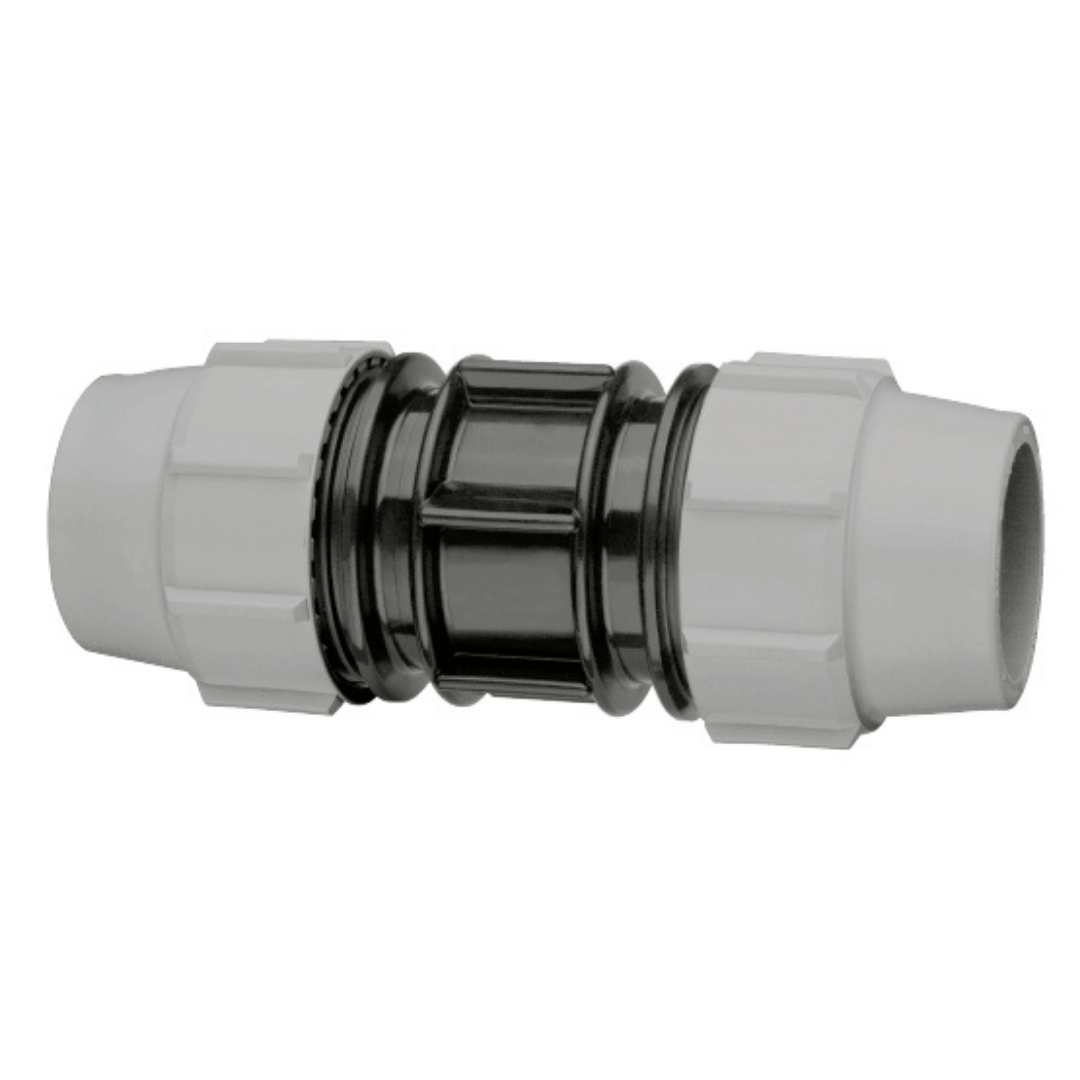

Plasson 7610 Equal Repair Coupler Compression Fitting

SKU: PL076100020

Price:
Sale price £8 Incl. VAT
£6.67 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

A slip-fit repair coupler for joining or repairing PE pipe. It fits over the pipe and hand-tightens for a secure, watertight compression joint, no special tools needed, suited to metric polyethylene water supply pipe repair and maintenance.

Benefits of the Plasson 7610 Equal Repair Coupler Compression Fitting:

  • Slides freely along the pipe before tightening, so it can be positioned exactly where it's needed
  • Captive NBR O-ring seal with polyacetal grip ring gives maximum pull-out resistance and long seal life
  • Tool-free, hand-tightened assembly for fast on-site repairs
  • Built from durable polypropylene for a long-lasting, secure connection
  • Rated up to 16 bar; each fitting individually pressure-tested at the point of manufacture
  • WRAS-approved for use on potable water supply

Product Specifications:

Body Material: Polypropylene, high-grade copolymer.

Nut Material: Polypropylene, high-grade copolymer.

Split Ring Material: Polyacetal

Seal Material: NBR

Standards: ISO 17885 for water applications, AS/NZS 4129

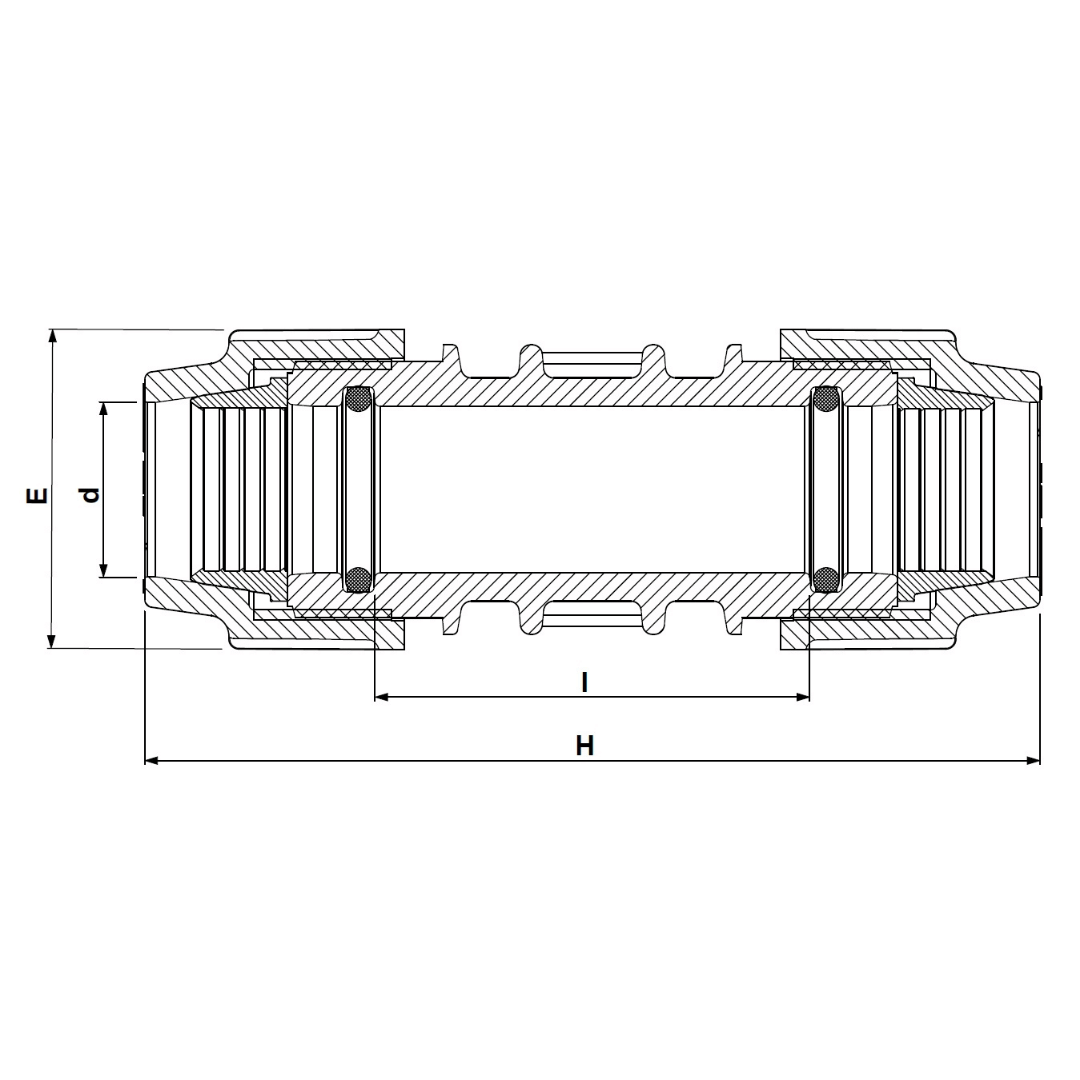

Product Code d mm E mm H mm L mm Pressure Rating Water Weight g
PL076100020 20 48 122 78 PN 16 141
PL076100025 25 54 136 90 PN 16 119
PL076100032 32 64 174 120 PN 16 202
PL076100040 40 82 215 148 PN 16 360
PL076100050 50 96 244 158 PN 16 536
PL076100063 63 113 270 170 PN 16 836
PL076100125 125 212 460 265 PN 16 5318
