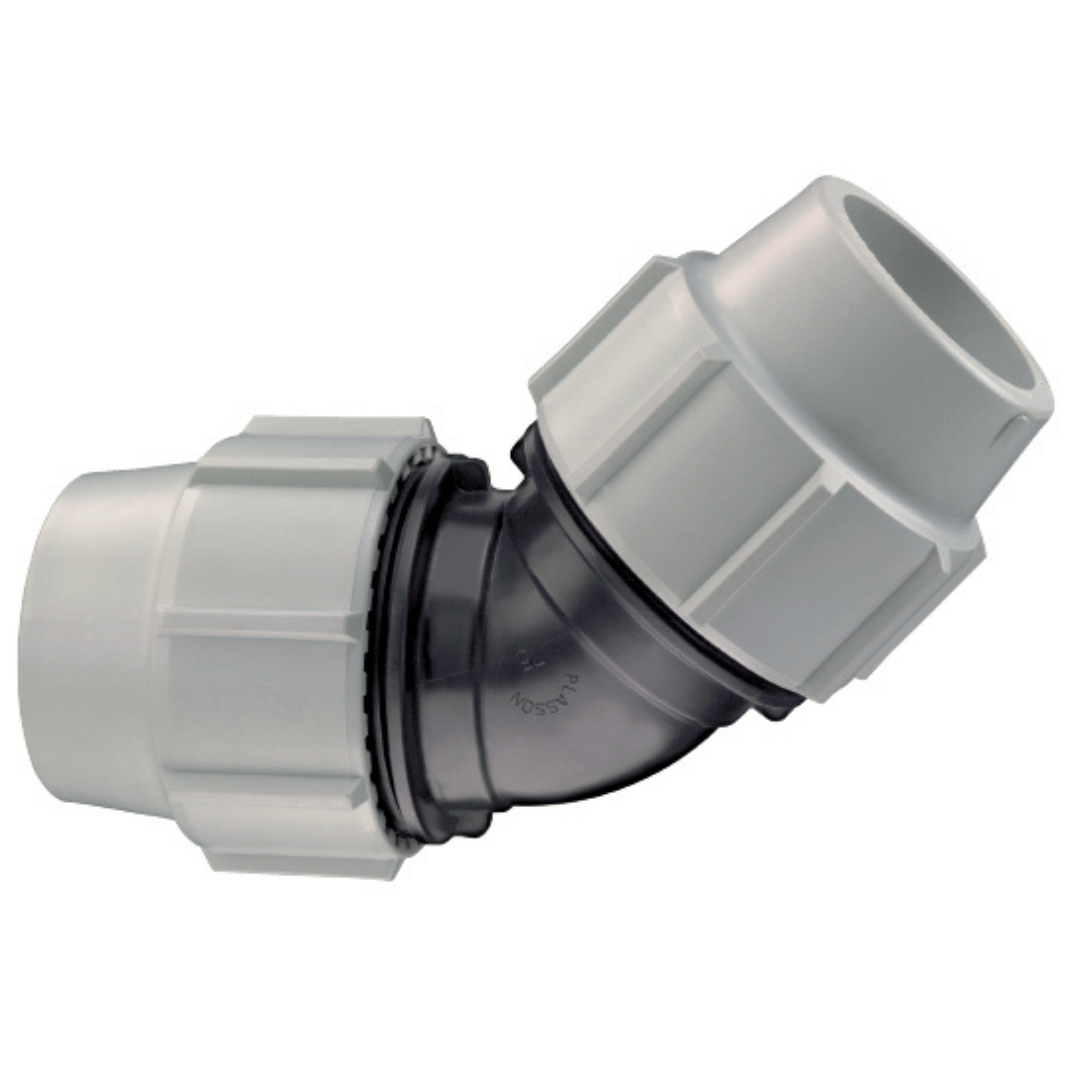

Plasson 7460 45° Elbow Compression Fitting

SKU: PL070600032

Price:
Sale price £23.29 Incl. VAT
£19.41 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

A compression elbow for changing the direction of a PE pipe run by 45°. Fits over each pipe end and hand-tightens for a secure, watertight seal, no tools needed, suited to water mains, irrigation and general infrastructure use wherever a gentler bend is needed than a 90° elbow allows.

Benefits of the Plasson 7460 45° Elbow Compression Fitting:

  • Changes pipe direction by 45° without cutting or heat-fusing the pipe
  • Tool-free assembly. Nut tightens by hand at each connection
  • Captive O-ring seal at each end for a secure, leak-free connection
  • Built from high-grade polypropylene copolymer for strong impact and stress resistance
  • Rated for working pressures of up to 16 bar
  • WRAS-approved for use on potable water supply
  • 50-year design life

Product Specifications:

Body Material: Polypropylene, high-grade copolymer.

Nut Material: Polypropylene, high-grade copolymer.

Split Ring Material: Polyacetal

Seal Material: NBR

Standards: ISO 17885 for water applications, AS/NZS 4129

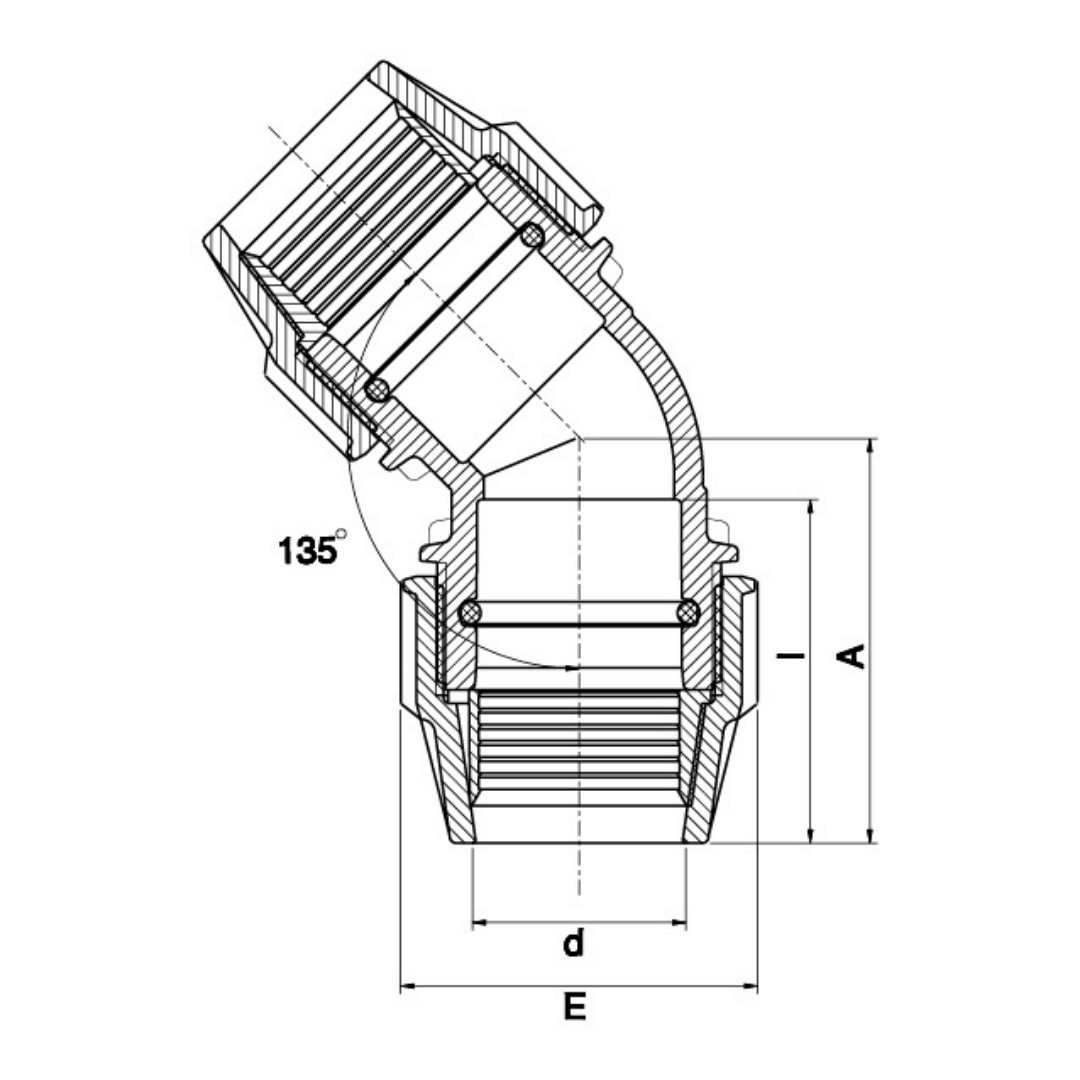

Product Code d mm A mm E mm L mm Pressure Rating Water Weight g
PL070600032 32 92 64 67 PN 16 189
PL070600040 40 99 82 84 PN 16 330
PL070600050 50 110 96 93 PN 16 476
PL070600063 63 130 113 110 PN 16 772
PL870600090 90 194 152 164 PN 16 2040
PL870600110 110 237 181 196 PN 16 3558
