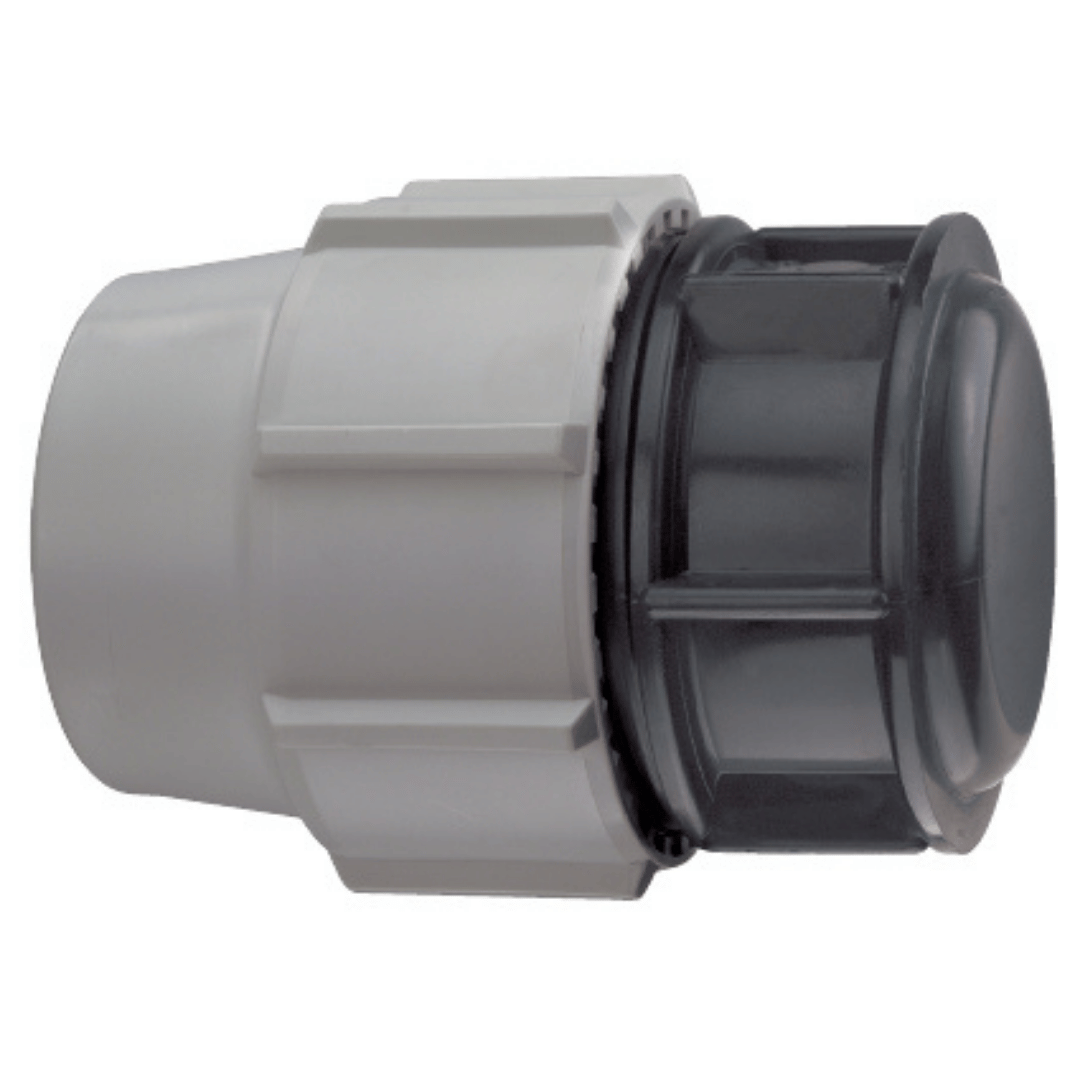

Plasson 7120 End Plug Compression Fitting

SKU: PL071200020

Price:
Sale price £8.16 Incl. VAT
£6.80 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

A push-fit compression end plug for sealing the end of a PE pipe. Insert and hand-tighten for a secure, watertight seal, no tools needed. Suitable for water supply, industrial, landscaping and farming applications.

Benefits of the Plasson 7120 End Plug Compression Fitting:

  • Hand-tightened compression nut, no tools required to install
  • Captive O-ring seal fitted as standard for a reliable, watertight finish
  • Made from virgin polypropylene for excellent impact and stress resistance
  • Rated for working pressures of up to 16 bar
  • WRAS-approved for use on potable water supply
  • 50-year design life

Product Specifications:

Body Material: Polypropylene, high-grade copolymer.

Nut Material: Polypropylene, high-grade copolymer.

Split Ring Material: Polyacetal

Seal Material: NBR

Standards: ISO 17885 for water applications, AS/NZS 4129

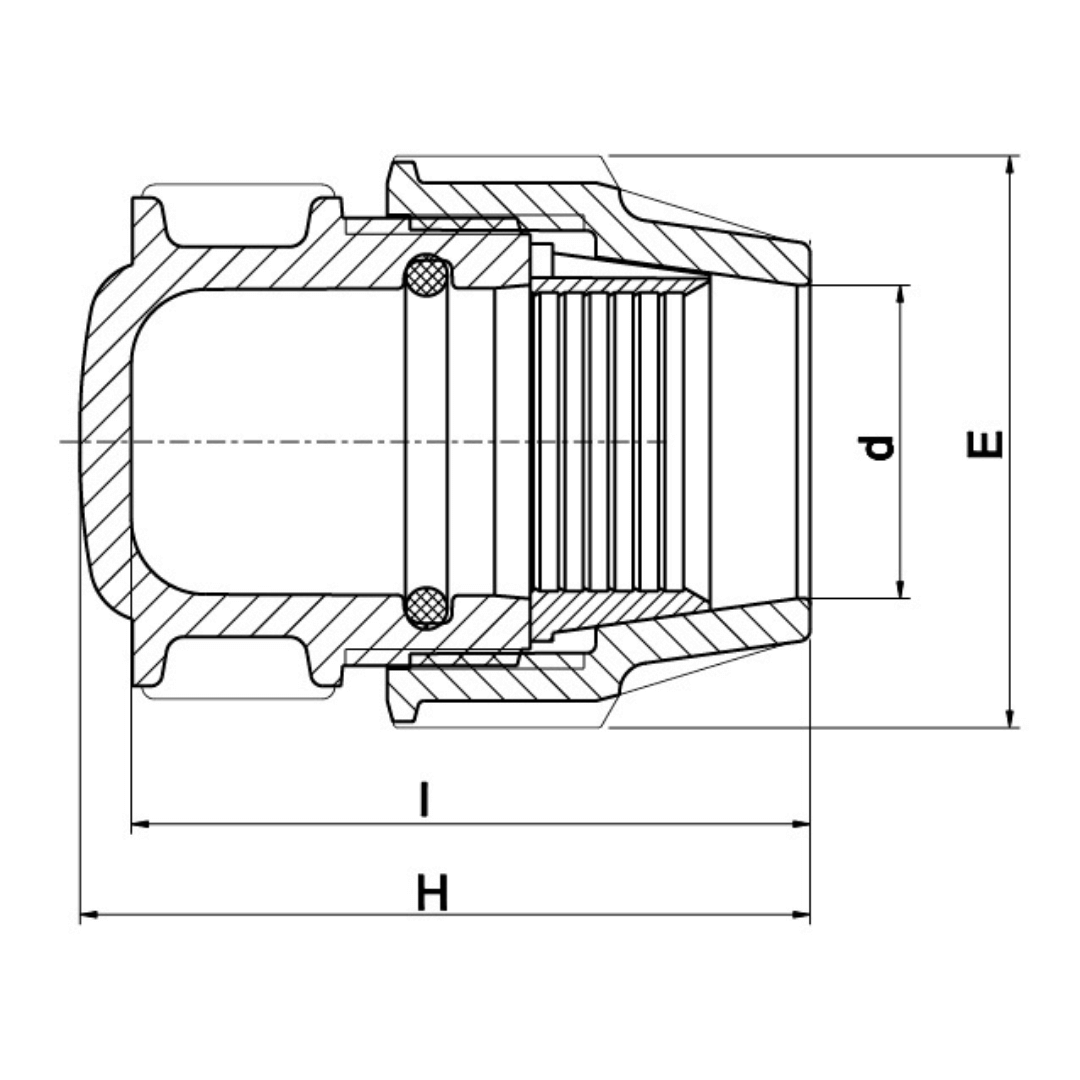

Product Code d mm E mm H mm L mm Pressure Rating Water Weight g
PL071200020 20 48 79 74 PN 16 57
PL071200025 25 54 82 77 PN 16 72
PL071200032 32 64 92 87 PN 16 108
PL071200040 40 82 102 97 PN 16 186
PL071200050 50 96 121 114 PN 16 270
PL071200063 63 113 145 122 PN 16 448
PL871200075 75 132 177 161 PN 16 740
PL871200090 90 152 211 169 PN 16 1082
PL871200110 110 181 234 221 PN 16 1924
