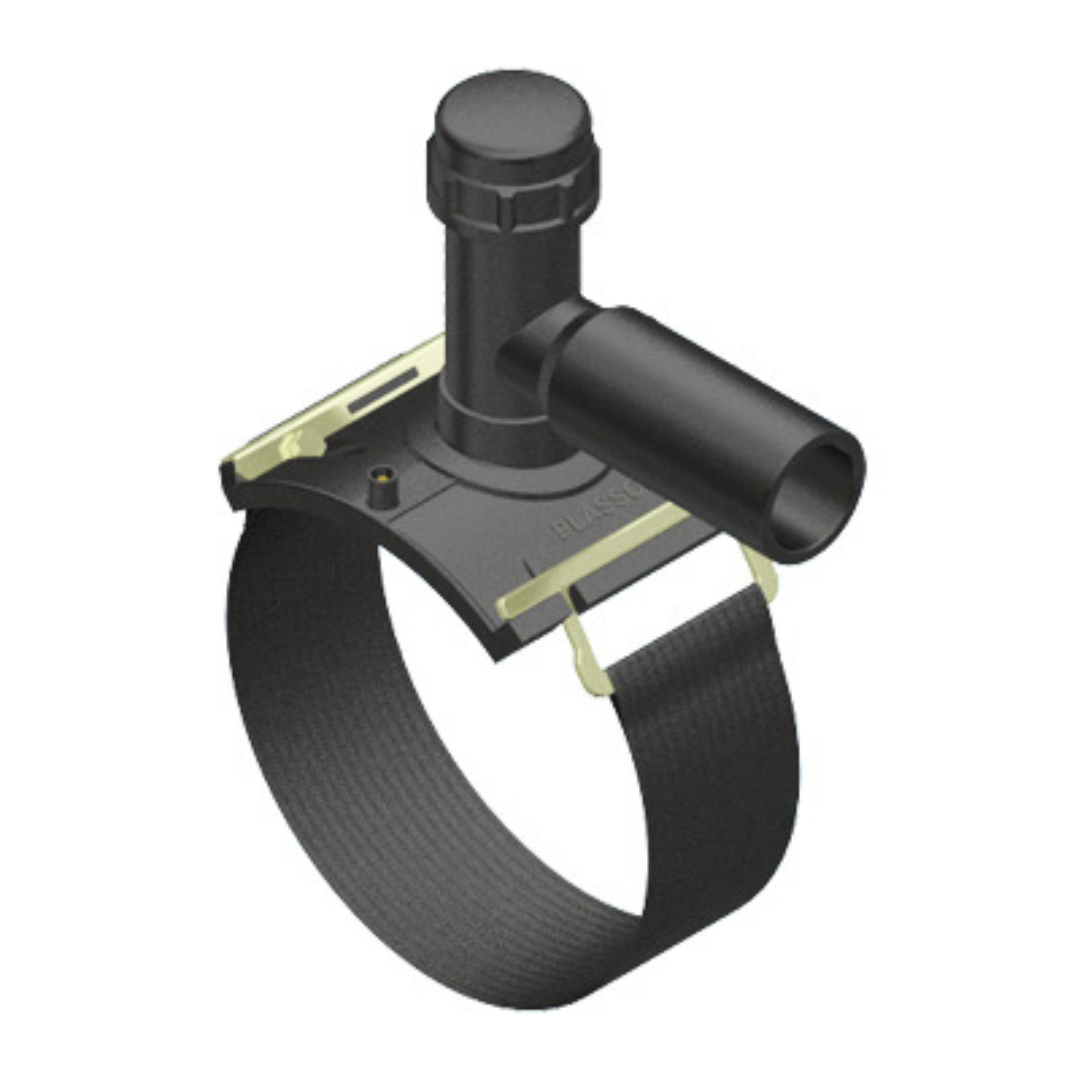

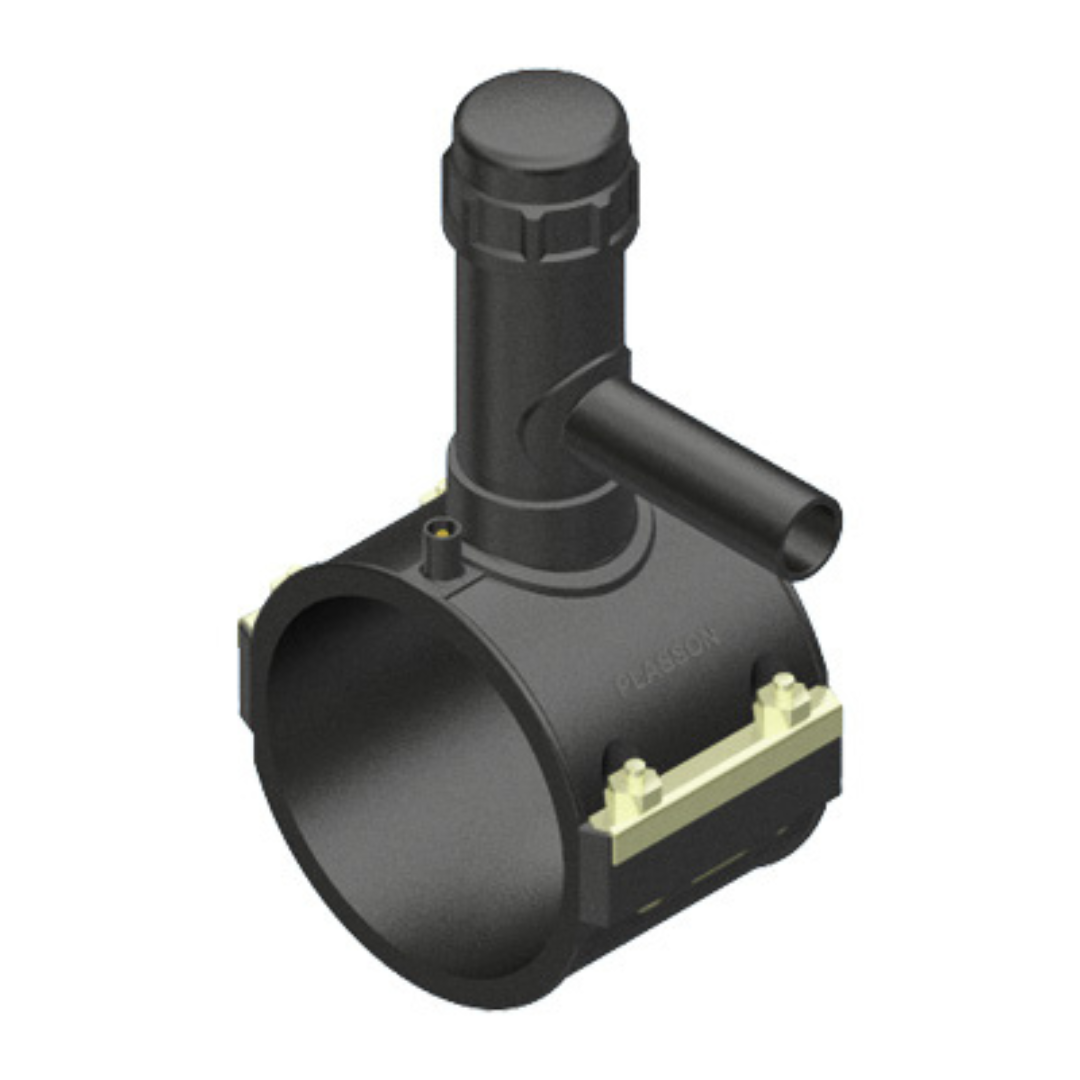

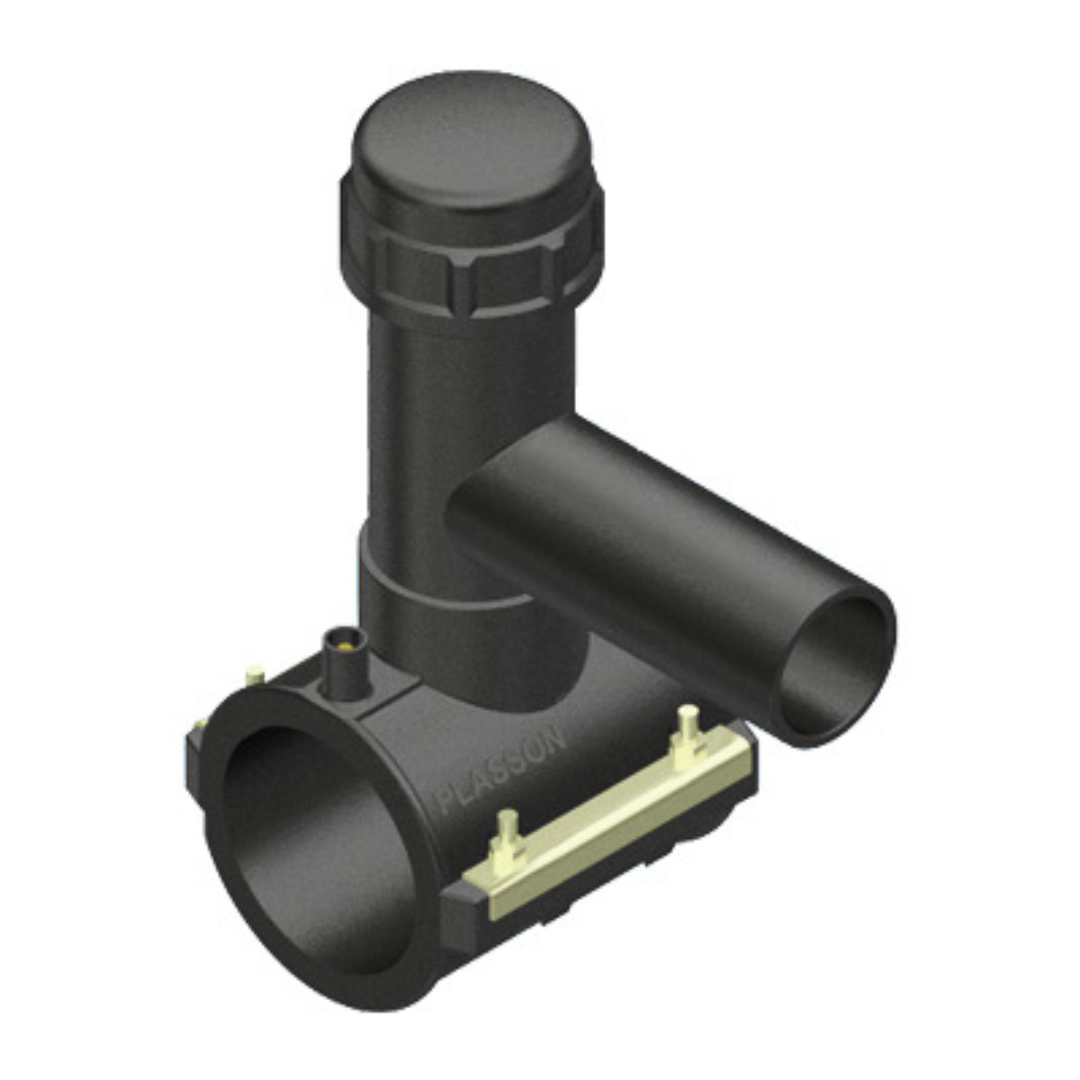

Plasson 496304 PN16 Electrofusion Tapping Tee

SKU: PF496304040032

Price:
Sale price £59.52 Incl. VAT
£49.60 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

An electrofusion tapping saddle for adding a branch connection to an existing PE pipe run without cutting into the main. The saddle fuses directly onto the outside of the pipe with an embedded electric heating coil, after which the branch hole is drilled through the fitting using the matching tapping tool. Useful for connecting to live or in service mains without shutting off supply. Rated PN16 and suited to SDR11 pipe. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode reading and manual control boxes.

Benefits of the Plasson 496304 PN16 Electrofusion Tapping Tee:

  • Adds a branch connection without cutting or depressurising the main pipe
  • Fuses directly onto the outside of the pipe for a strong, permanent seal
  • Branch hole is drilled through the fitting after fusion, using the matching tapping tool for the welding cap type
  • Suited to live or in service main connections
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode reading and manual control boxes
  • Rated PN16 for water applications
  • WRAS approved

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129

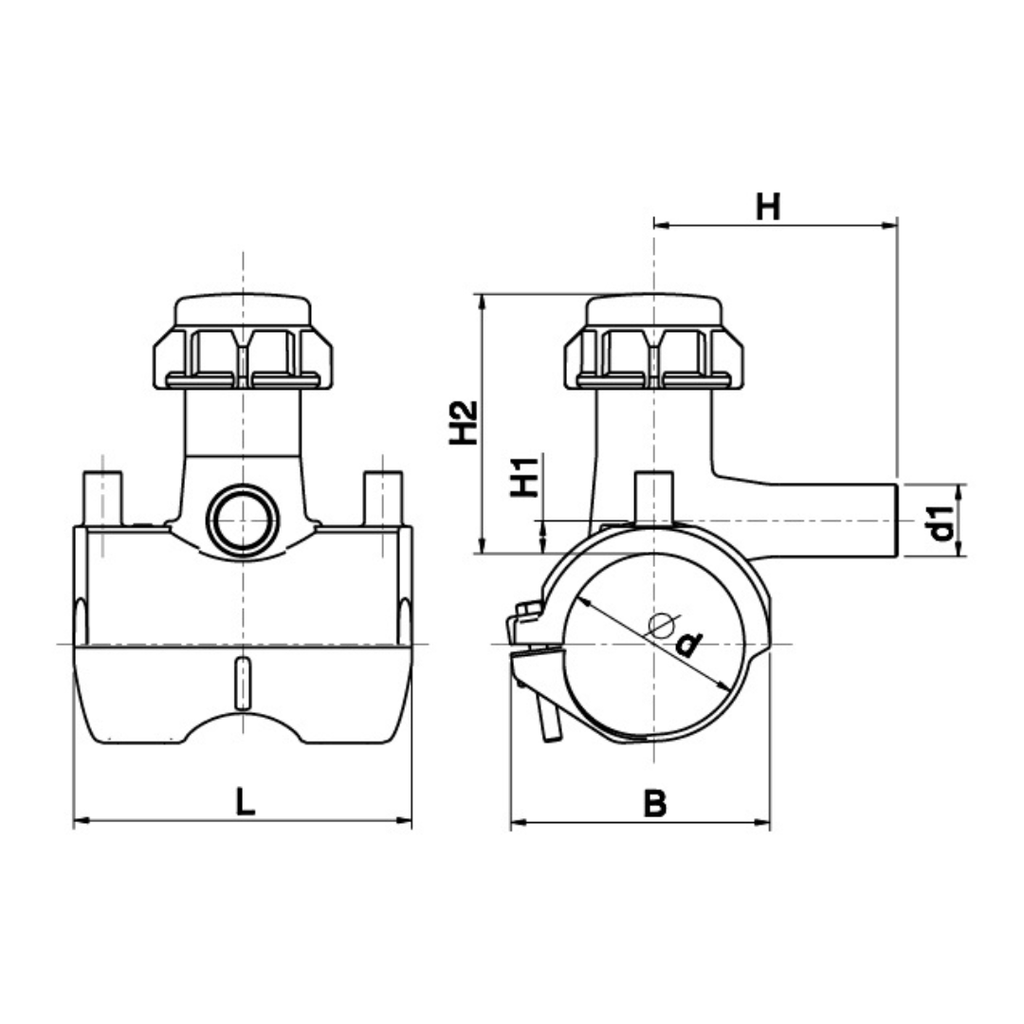

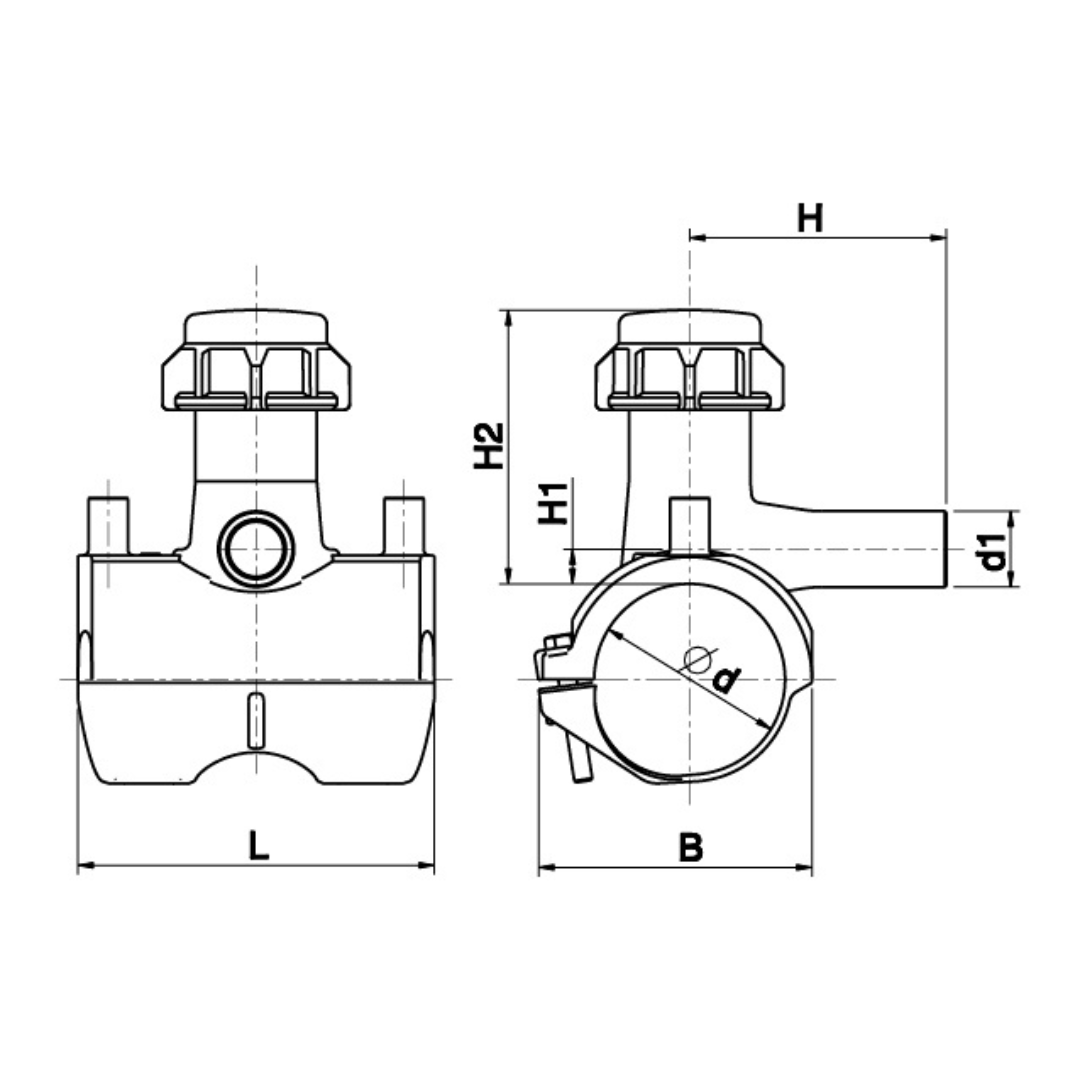

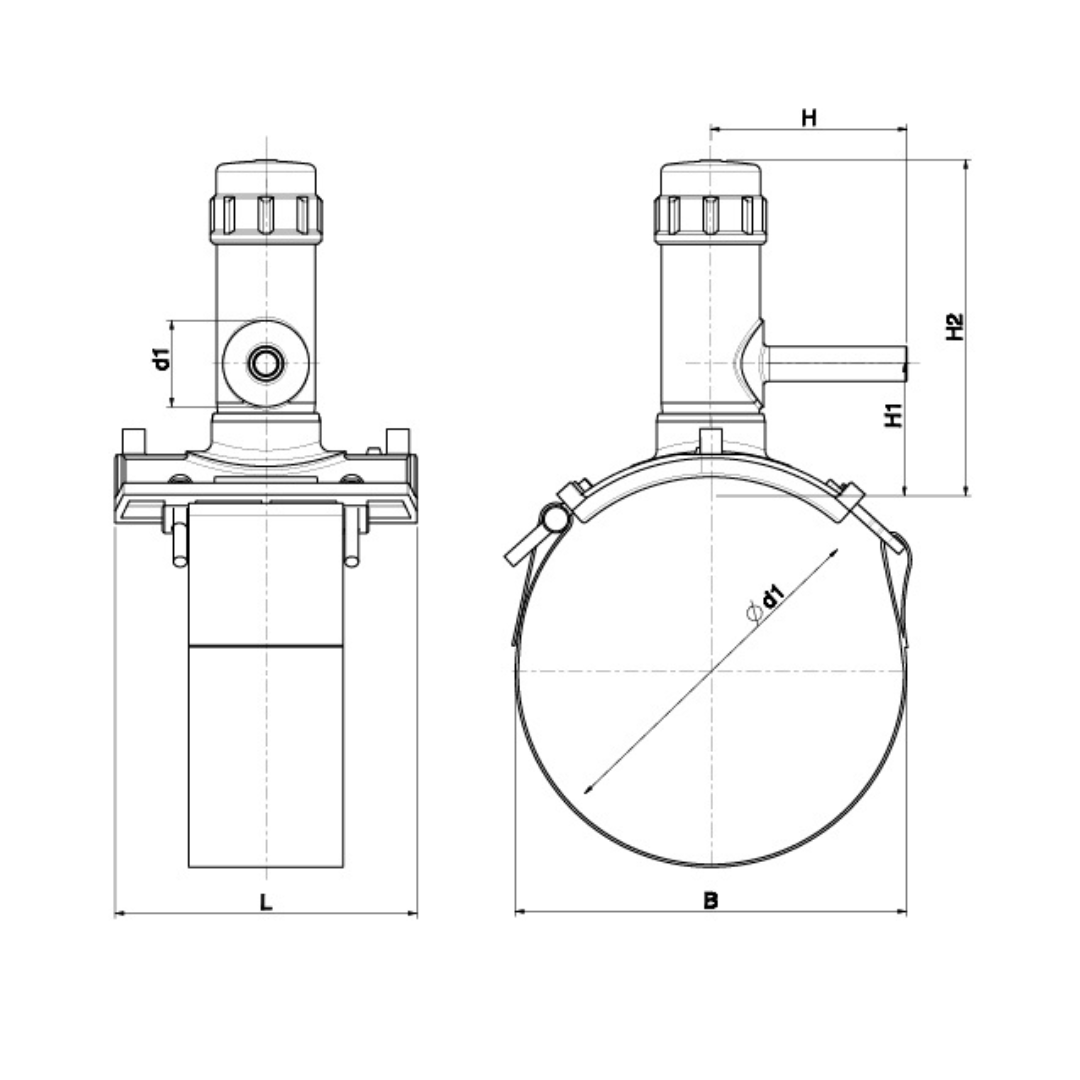

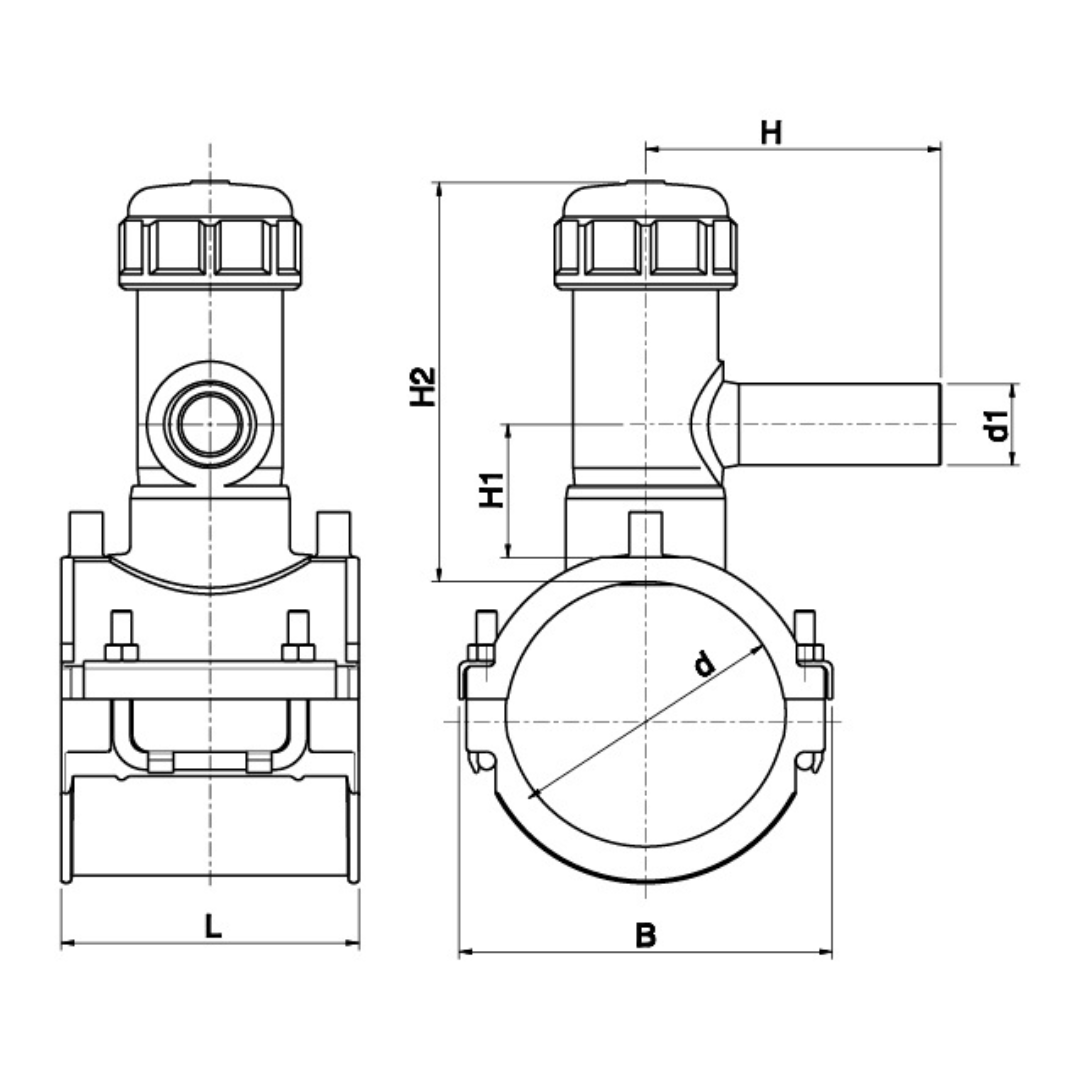

Product Code PN16 d mm d1 mm B mm H mm H1 mm H2 mm L mm Gas Pressure Rating Type Suitable Pipes Welding Cap Type Weight g
PF496304040032 PN16 40 32 66 121 11 94 100 PE100 SDR 11 mb SDR11 Type C 295
PF496304050032 PN16 50 32 76 122 12 98 100 PE100 SDR 11 mb SDR11 Type C 390
PF496304063032N PN16 63 32 100 99 12 90 118 PE100 SDR 11 mb SDR11 Type C 380
PF496304063063 PN16 63 63 100 175 64 177 118 PE100 SDR 11 - SDR11 Type A 962
PF496304090025 PN16 90 25 126 108 16 114 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type B 770
PF496304090032 PN16 90 32 126 126 16 114 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type B 778
PF496304090063 PN16 90 63 126 175 64 177 118 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1300
PF496304110032 PN16 110 32 148 127 16 114 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type B 970
PF496304110063 PN16 110 63 148 175 64 177 118 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1383
PF496304125032 PN16 125 32 162 131 16 114 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type B 899
PF496304125063 PN16 125 63 162 175 64 177 118 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1426
PF496304160032 PN16 160 32 199 144 16 138 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type A 1320
PF496304160063 PN16 160 63 199 197 20 138 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type A 1390
PF496304180032 PN16 180 32 219 144 18 138 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type A 1565
PF496304180063 PN16 180 63 219 197 20 138 118 PE100 SDR 11 mb SDR 7 to SDR 17 Type A 1605
PF496304200032 PN16 200 32 202 132 56 177 176 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1451
PF496304200063 PN16 200 63 202 175 64 177 176 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1579
PF496304225032 PN16 225 32 227 132 56 177 176 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1450
PF496304225063 PN16 225 63 227 175 64 177 176 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1589
PF496304250032 PN16 250 32 252 132 56 177 176 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1464
PF496304250063 PN16 250 63 252 175 64 177 176 PE100 SDR 11 - SDR 7 to SDR 17 Type A 1386
