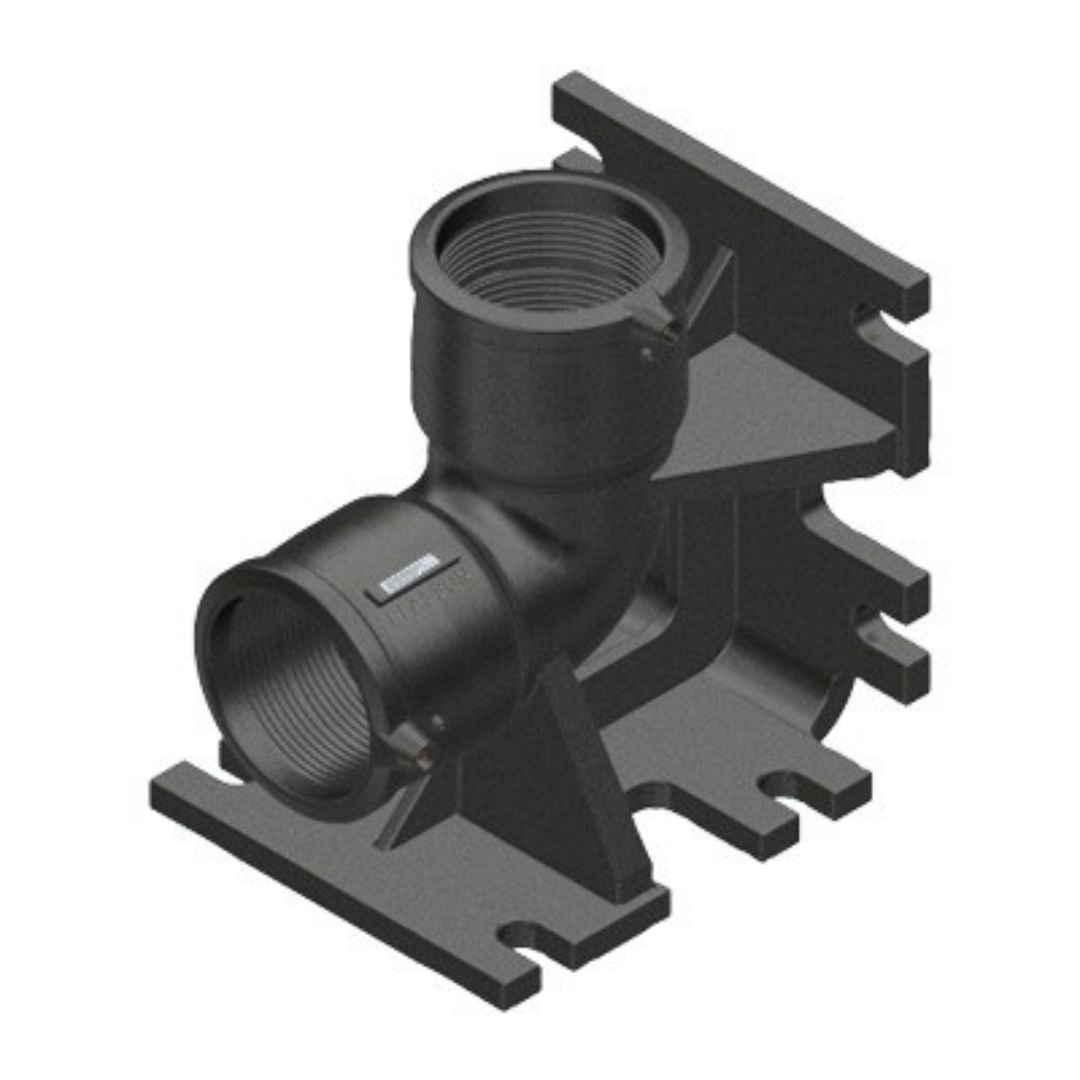

Plasson 491504 PN16 Electrofusion 90° Duckfoot Elbow

SKU: PF491504090

Price:
Sale price £132.26 Incl. VAT
£110.22 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

An electrofusion elbow for permanently joining two lengths of equal diameter PE pipe at a 90° angle, with a built in support foot for extra stability. Useful for above ground installations, meter runs, or wherever the fitting needs additional anchoring rather than being fully supported by surrounding pipe. Also available with an integrated 32mm branch outlet. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode reading and manual control boxes.

Benefits of the Plasson 491504 PN16 Electrofusion 90° Duckfoot Elbow:

  • Integrated support foot provides stability for above ground or fixed installations
  • Creates a permanent, molecularly fused joint at each end
  • Available with an integrated 32mm branch outlet for an added connection point
  • Embedded heating coil ensures uniform, consistent fusion across each connection
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode reading and manual control boxes
  • Rated PN16 for water applications
  • WRAS approved

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129

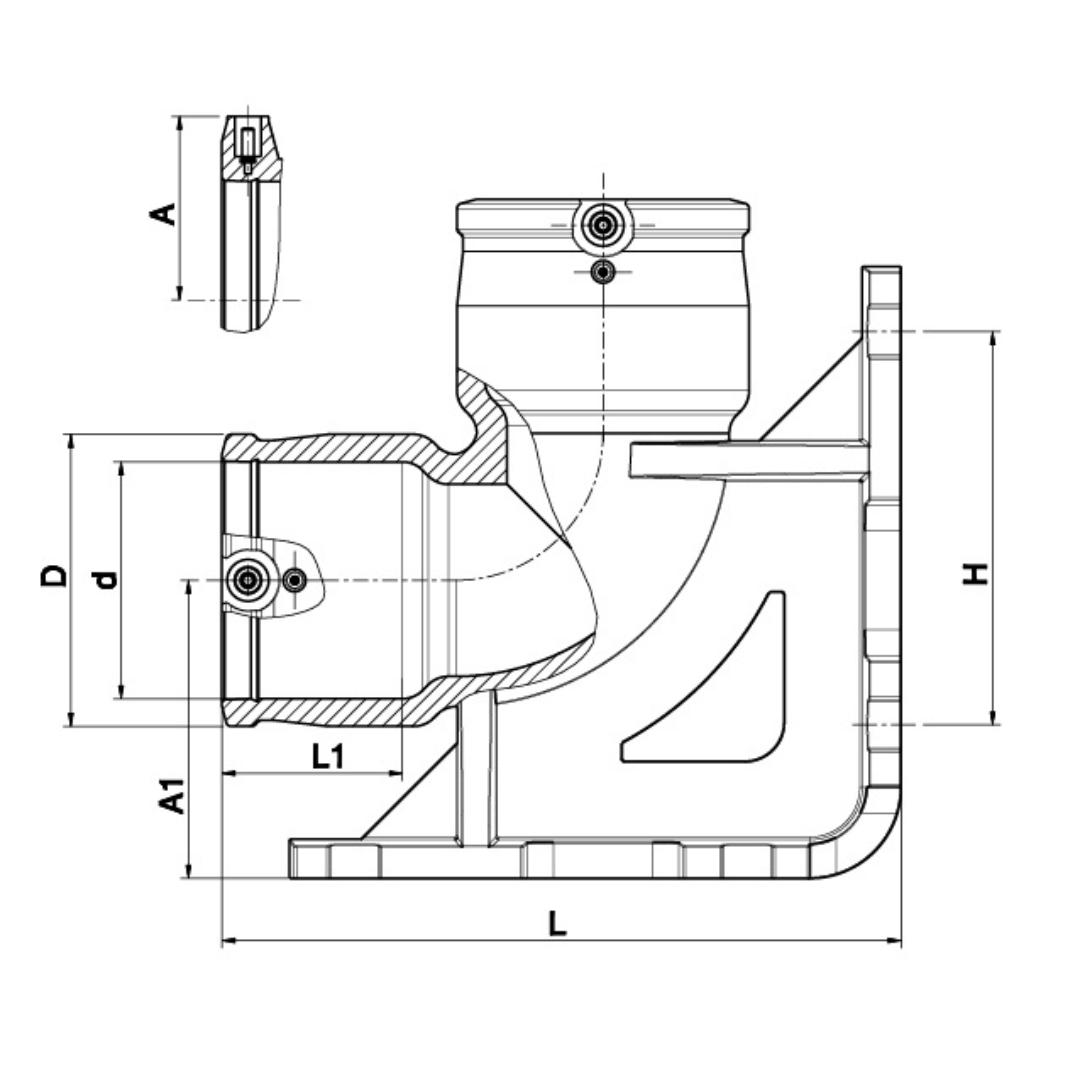

Product Code PN16 d mm d1 mm A mm D mm H mm l1 mm L mm Gas Pressure Rating Suitable Pipes Weight g
PF491504090 PN16 90 - 71 112 146 69 261 PE100 SDR 11 SDR 7 to SDR 17 2260
PF4915Q4090032 PN16 90 32 71 112 146 69 261 PE100 SDR 11 SDR 7 to SDR 17 2270
