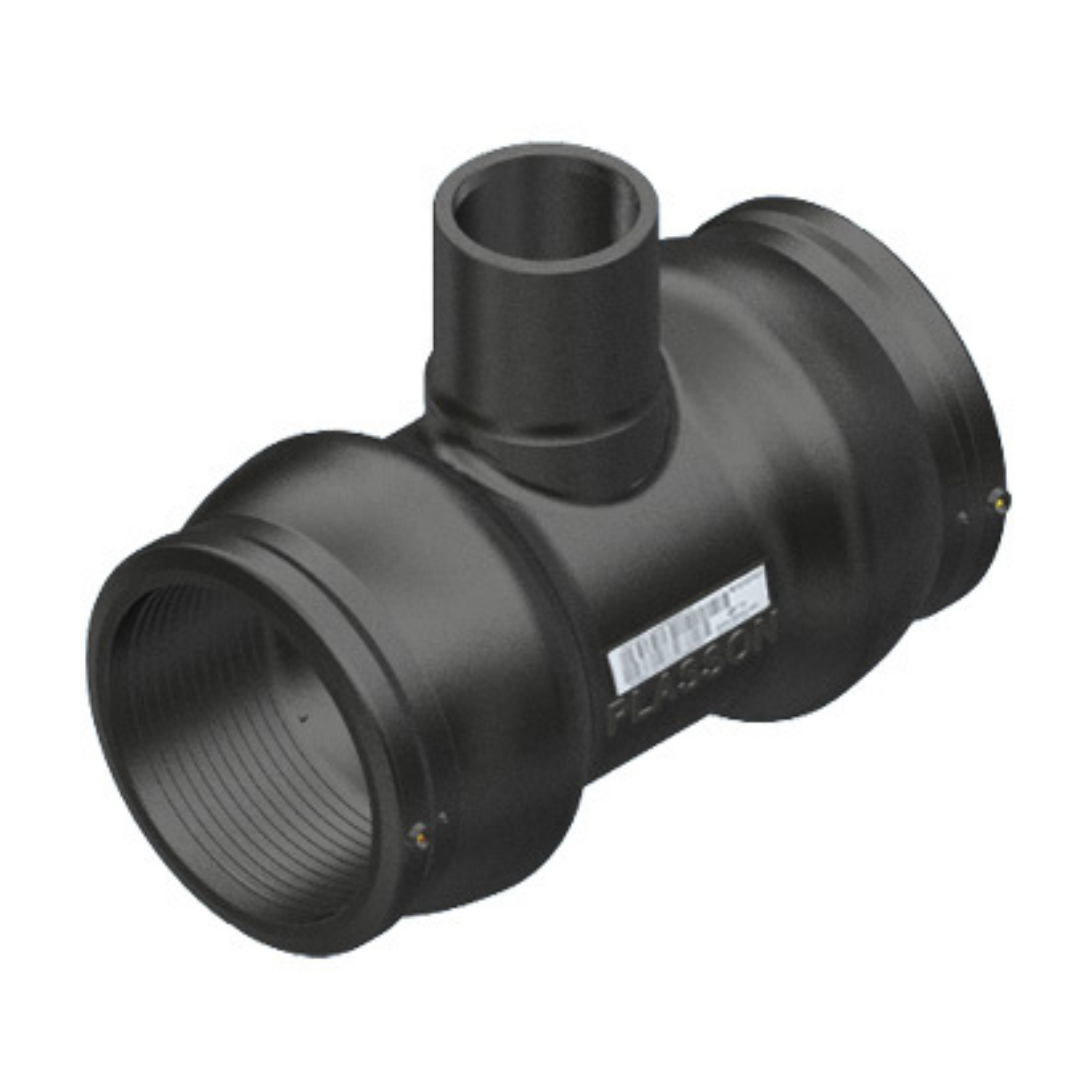

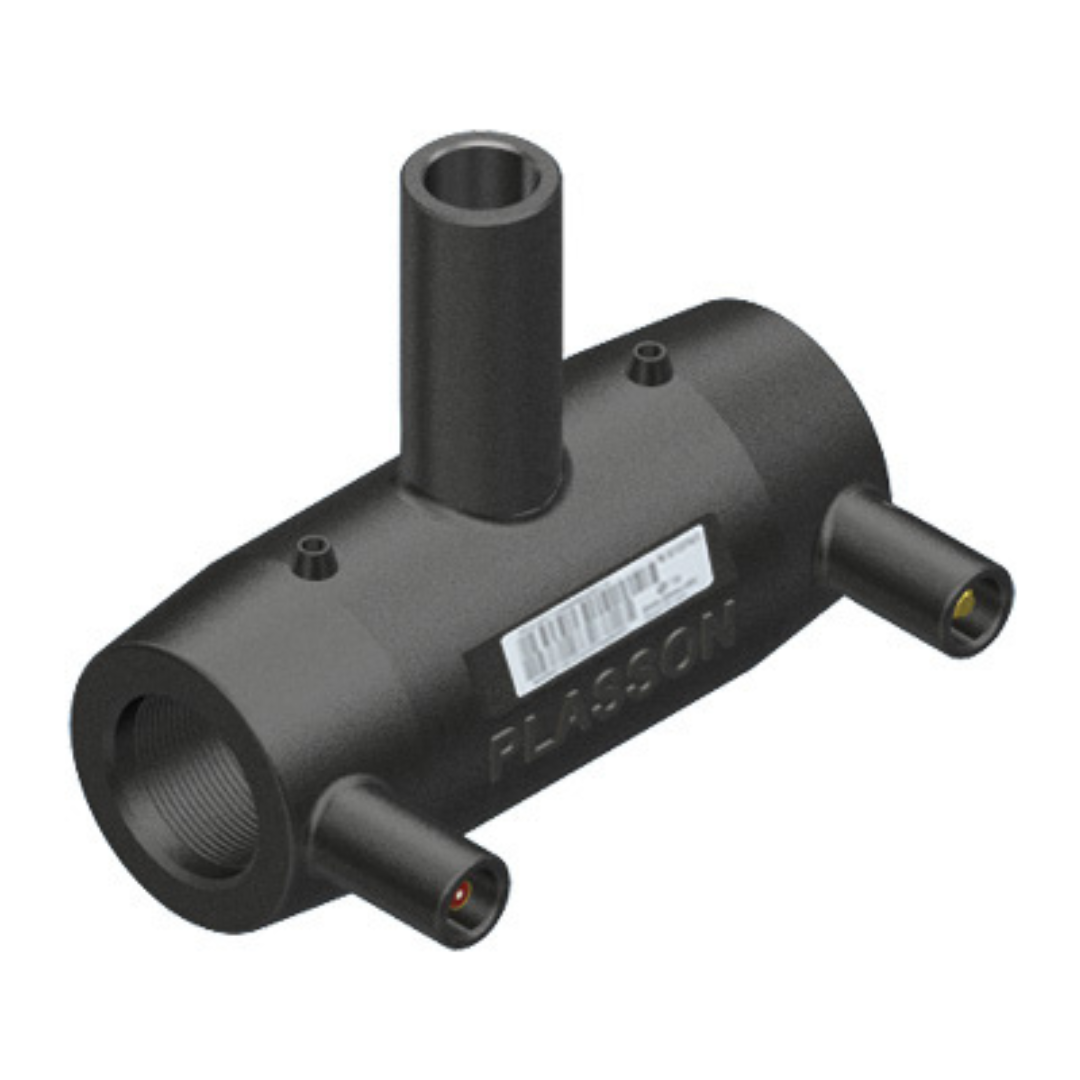

Plasson 491404 PN16 Electrofusion Reducing Tee

SKU: PF491404025020

Price:
Sale price £20.76 Incl. VAT
£17.30 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

An electrofusion tee for branching a PE pipe run into a smaller diameter outlet. Uses an embedded electric heating coil fused to the pipe with an electrofusion welding machine to create a strong, molecularly bonded joint at each of the three connections. Rated PN16 and suited to SDR7 to SDR17 pipe. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode reading and manual control boxes.

Benefits of the Plasson 491404 PN16 Electrofusion Reducing Tee:

  • Branches a pipe run down to a smaller diameter outlet in a single fitting
  • Creates a permanent, molecularly fused joint at each connection
  • Embedded heating coil ensures uniform, consistent fusion across every joint
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode reading and manual control boxes
  • Rated PN16 for water applications
  • WRAS approved

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129

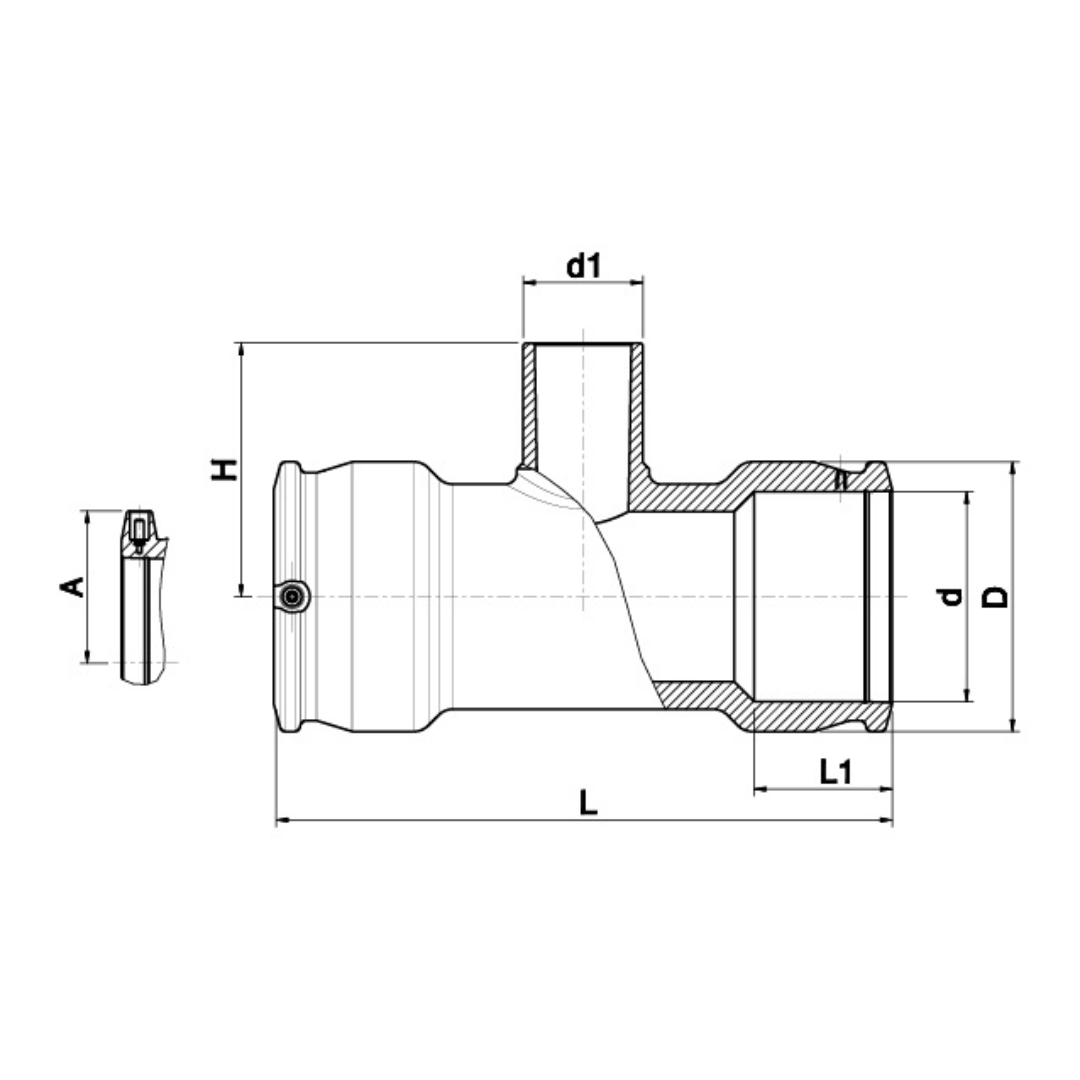

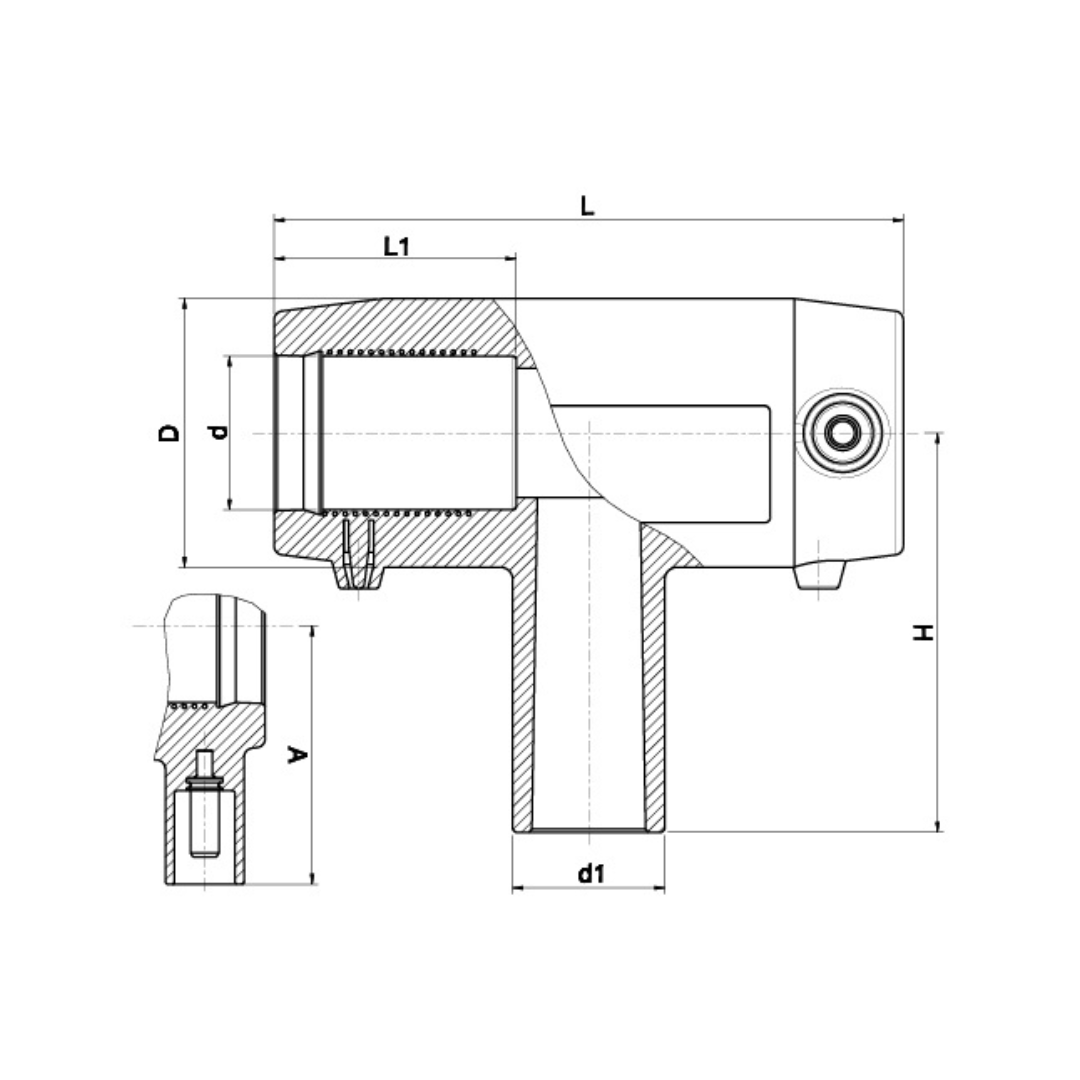

Product Code PN16 d mm d1 mm A mm D mm H mm l1 mm L mm L1 mm Gas Pressure Rating Suitable Pipes Weight g
PF491404025020 PN16 25 20 43 44 66 39 104 - PE100 SDR 11 SDR 7 to SDR 11 110
PF491404032020 PN16 32 20 43 44 66 39 104 - PE100 SDR 11 SDR 7 to SDR 11 90
PF491404032025 PN16 32 25 43 44 66 39 104 - PE100 SDR 11 SDR 7 to SDR 11 90
PF491404040025 PN16 40 25 47 56 72 43 120 - PE100 SDR 11 SDR 7 to SDR 17 150
PF491404040032 PN16 40 32 47 56 75 43 120 - PE100 SDR 11 SDR 7 to SDR 17 150
PF491404050020 PN16 50 20 52 68 78 48 139 - PE100 SDR 11 SDR 7 to SDR 17 220
PF491404050025 PN16 50 25 52 68 78 48 139 - PE100 SDR 11 SDR 7 to SDR 17 230
PF491404050032 PN16 50 32 52 68 86 48 139 - PE100 SDR 11 SDR 7 to SDR 17 230
PF491404063020 PN16 63 20 58 82 85 - 167 49 PE100 SDR 11 SDR 7 to SDR 17 350
PF491404063032 PN16 63 32 58 82 93 - 167 58 PE100 SDR 11 SDR 7 to SDR 17 350
PF491404063040 PN16 63 40 58 82 104 - 167 58 PE100 SDR 11 SDR 7 to SDR 17 370
PF491404063050 PN16 63 50 58 82 109 - 167 58 PE100 SDR 11 SDR 7 to SDR 17 380
PF491404075063 PN16 75 63 62 96 122 - 196 63 PE100 SDR 11 SDR 7 to SDR 17 610
PF491404090063 PN16 90 63 71 113 124 68 294 - PE100 SDR 11 SDR 7 to SDR 17 1050
PF491404110063 PN16 110 63 81 143 134 71 326 - PE100 SDR 11 SDR 7 to SDR 17 1720
PF491404110090 PN16 110 90 81 143 147 71 326 - PE100 SDR 11 SDR 7 to SDR 17 1820
PF491404125090 PN16 125 90 88 165 161 86 382 - PE100 SDR 11 SDR 7 to SDR 17 2810
PF491404125110 PN16 125 110 88 165 173 86 382 - PE100 SDR 11 SDR 7 to SDR 17 2860
PF491404160090 PN16 160 90 105 209 192 97 396 - PE100 SDR 11 SDR 7 to SDR 17 4190
PF491404160110 PN16 160 110 106 208 193 86 440 - PE100 SDR 11 SDR 7 to SDR 17 4470
PF491404160125 PN16 160 125 105 209 214 97 396 - PE100 SDR 11 SDR 7 to SDR 17 4470
PF491404180090 PN16 180 90 116 245 200 106 422 - PE100 SDR 11 SDR 7 to SDR 17 6090
PF491404180110 PN16 180 110 116 245 219 106 422 - PE100 SDR 11 SDR 7 to SDR 17 6270
PF491404180125 PN16 180 125 116 245 225 106 422 - PE100 SDR 11 SDR 7 to SDR 17 6410
PF491404180140 PN16 180 140 116 245 237 106 422 - PE100 SDR 11 SDR 7 to SDR 17 6610
PF491404180160 PN16 180 160 116 245 250 106 422 - PE100 SDR 11 SDR 7 to SDR 17 6950
PF491404200090 PN16 200 90 125 261 205 114 451 - PE100 SDR 11 SDR 7 to SDR 17 7140
PF491404200110 PN16 200 110 125 261 210 114 451 - PE100 SDR 11 SDR 7 to SDR 17 7240
PF491404200160 PN16 200 160
PF491404225090 PN16 225 90 140 293 220 122 494 - PE100 SDR 11 SDR 7 to SDR 17 9900
PF491404225110 PN16 225 110 140 293 225 122 494 - PE100 SDR 11 SDR 7 to SDR 17 10000
PF491404225160 PN16 225 160
PF491404250090 PN16 250 90 152 326 235 129 538 - PE100 SDR 11 SDR 7 to SDR 17 13350
PF491404250110 PN16 250 110 152 326 240 129 538 - PE100 SDR 11 SDR 7 to SDR 17 13400
PF491404250160 PN16 250 160
