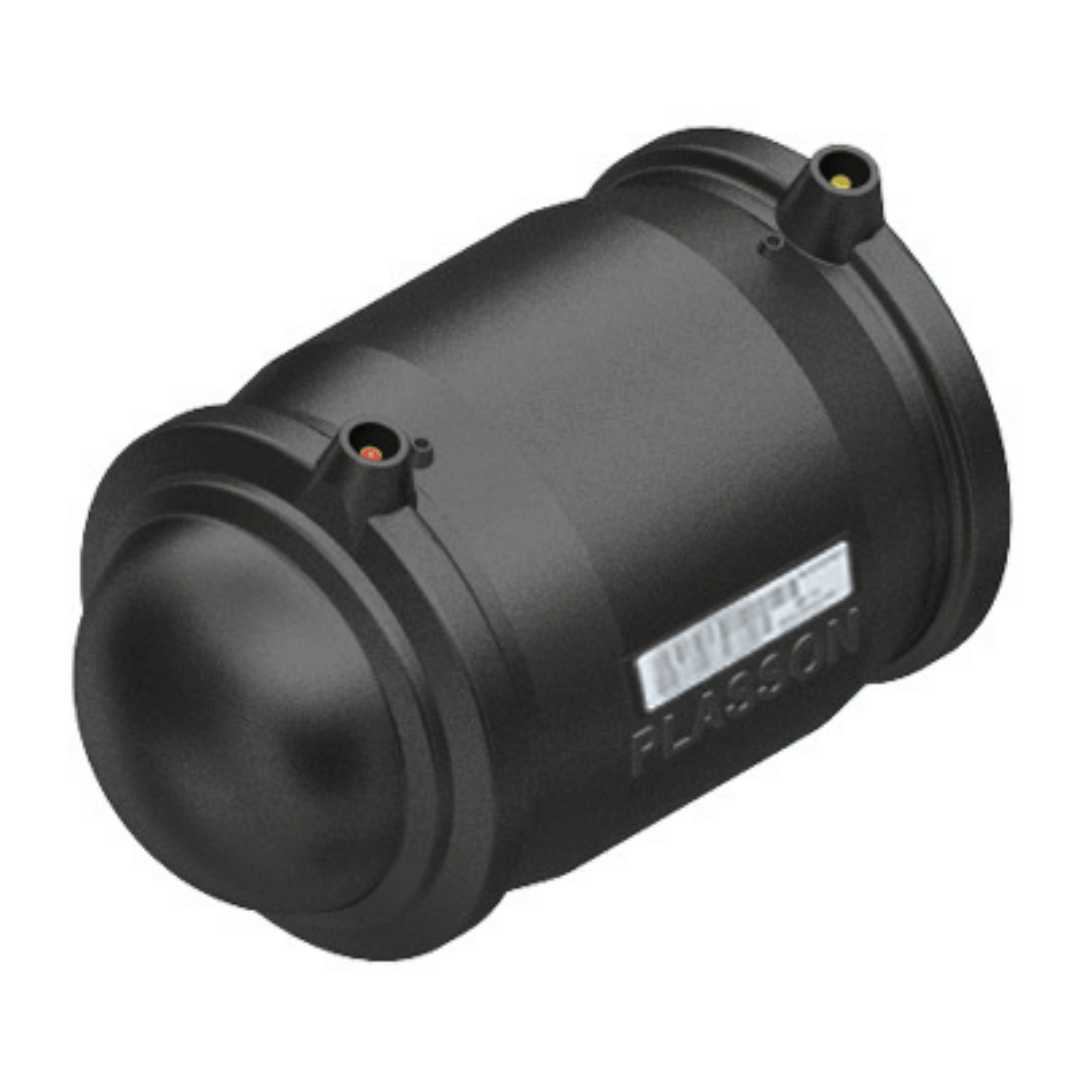

Plasson 491204 PN16 Electrofusion End Cap

SKU: PF491204020

Price:
Sale price £13.49 Incl. VAT
£11.24 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

An electrofusion end cap for permanently sealing the end of a PE pipe. Uses an embedded electric heating coil fused to the pipe with an electrofusion welding machine to create a strong, permanent, watertight seal. Rated PN16 and suited to SDR7 to SDR26 pipe depending on size. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode reading and manual control boxes.

Benefits of the Plasson 491204 PN16 Electrofusion End Cap:

  • Creates a permanent, molecularly fused seal at the end of a pipe run
  • Embedded heating coil ensures uniform, consistent fusion around the full seal
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode reading and manual control boxes
  • Rated PN16 for water applications
  • BS EN 12201 and BS EN 1555 approved
  • Manufactured from virgin PE100 for long term strength and chemical resistance

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129

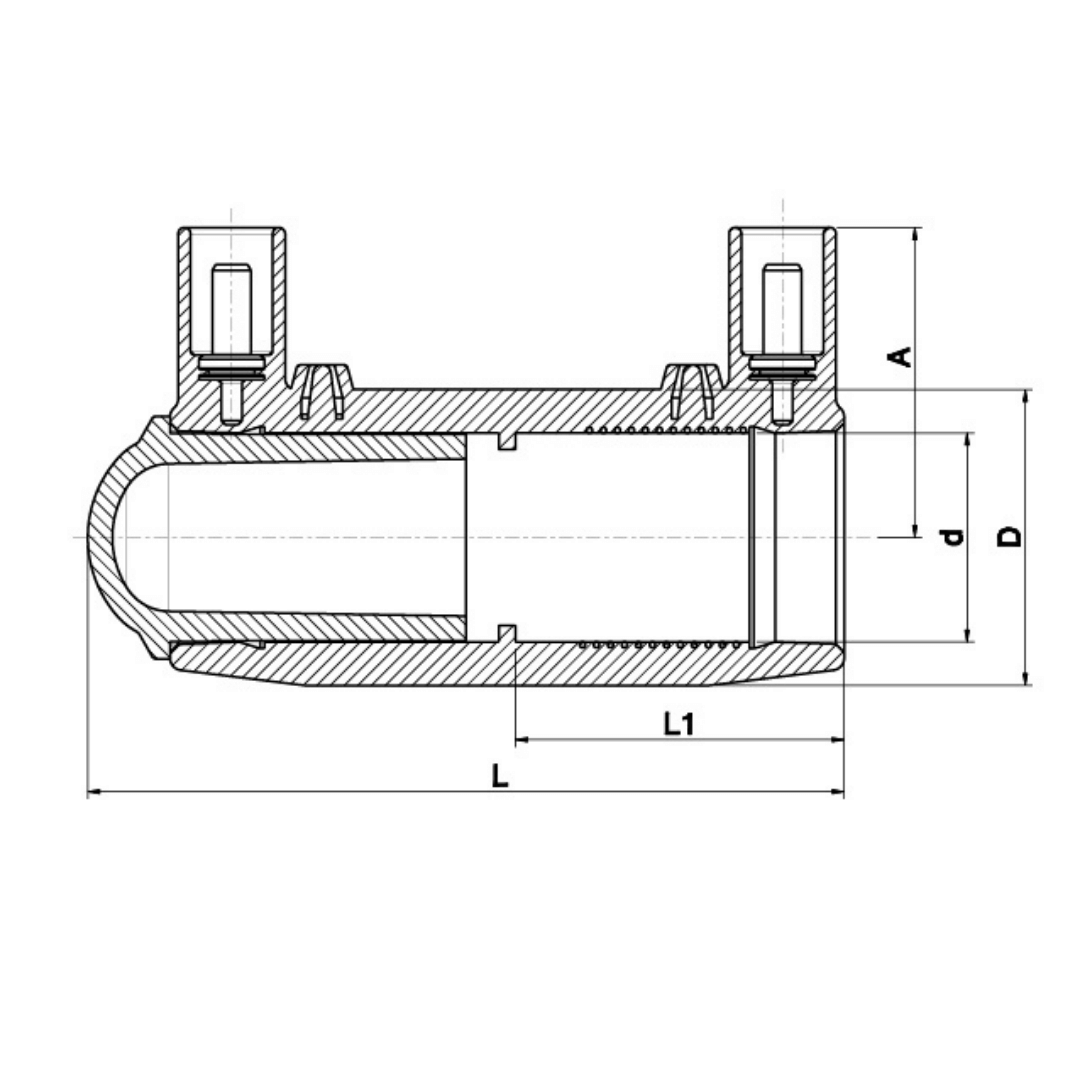

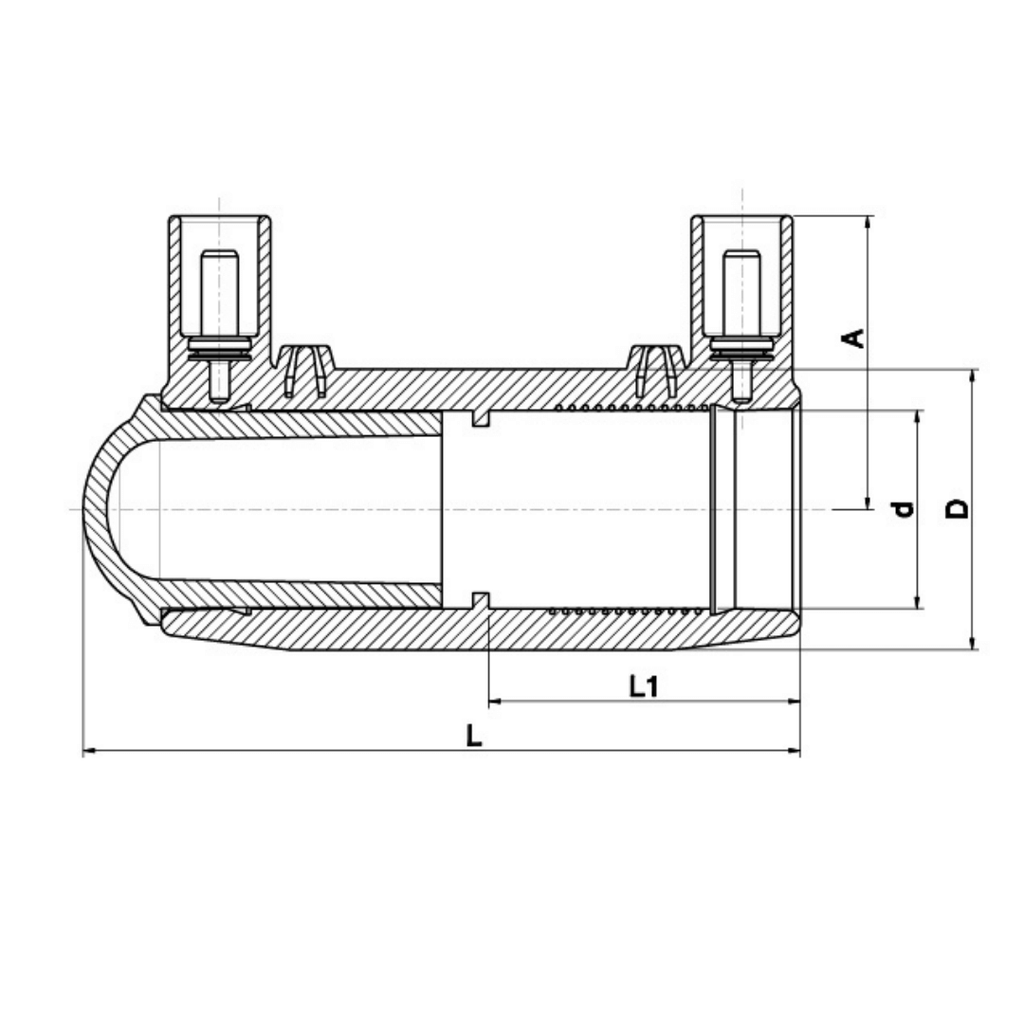

Product Code PN16 d mm A mm D mm l1 mm L mm L1 mm Gas Pressure Rating Suitable Pipes Weight g
PF491204020 PN16 20 34 31 37 84 - PE100 SDR 11 SDR 7 to SDR 11 60
PF491204025 PN16 25 37 36 40 92 - PE100 SDR 11 SDR 7 to SDR 11 50
PF491204032 PN16 32 42 44 - 103 42 PE100 SDR 11 SDR 7 to SDR 11 80
PF491204040 PN16 40 46 56 47 114 - PE100 SDR 11 SDR 7 to SDR 11 130
PF491204050 PN16 50 51 67 49 121 - PE100 SDR 11 SDR 7 to SDR 11 200
PF491204063 PN16 63 57 82 57 142 - PE100 SDR 11 SDR 7 to SDR 17 330
PF491204075 PN16 75 64 98 61 156 - PE100 SDR 11 SDR 7 to SDR 17 500
PF491204090 PN16 90 70 117 73 183 - PE100 SDR 11 SDR 7 to SDR 17 820
PF491204110 PN16 110 81 140 78 206 - PE100 SDR 11 SDR 7 to SDR 17 1260
PF491204125 PN16 125 87 157 85 222 - PE100 SDR 11 SDR 7 to SDR 17 1700
PF491204140 PN16 140 97 174 90 237 - PE100 SDR 11 SDR 7 to SDR 17 2350
PF491204160 PN16 160 105 194 93 261 - PE100 SDR 11 SDR 7 to SDR 21 2990
PF491204180 PN16 180 116 218 105 283 - PE100 SDR 11 SDR 7 to SDR 17 4160
PF491204200 PN16 200 126 242 109 289 - PE100 SDR 11 SDR 7 to SDR 17 5260
PF491204225 PN16 225 138 272 119 318 - PE100 SDR 11 SDR 7 to SDR 17 7260
PF491204250 PN16 250 156 311 - 344 123 PE100 SDR 11 SDR 7 to SDR 21 8380
PF491204280 PN16 280 170 340 134 396 - PE100 SDR 11 SDR 7 to SDR 17 11740
PF491204315 PN16 315 184 387 139 405 - PE100 SDR 11 SDR 7 to SDR 26 16050
