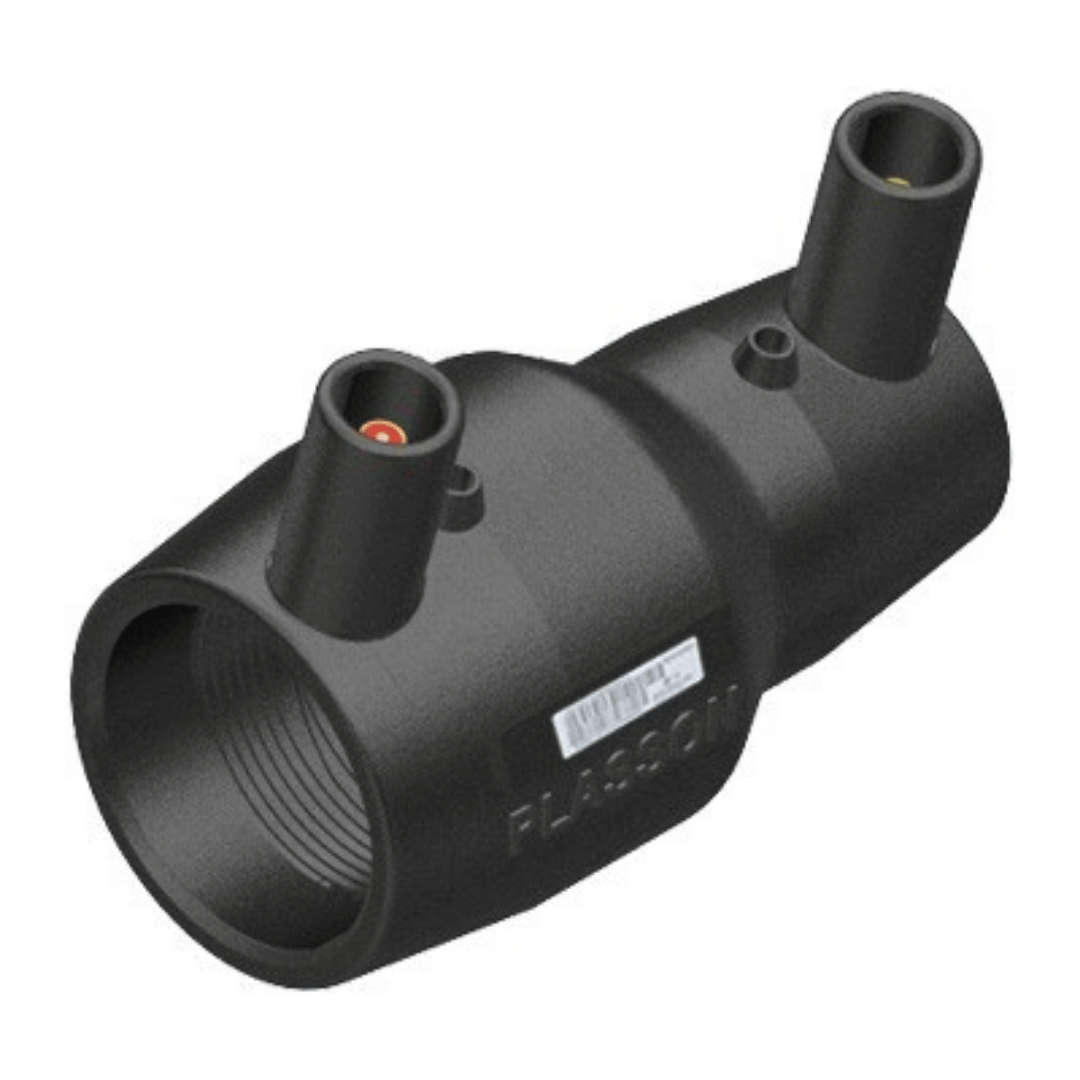

Plasson 491104 PN16 Electrofusion Reducing Coupler

SKU: PF491104025020

Price:
Sale price £7.62 Incl. VAT
£6.35 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

An electrofusion reducing coupler for permanently joining two lengths of PE pipe of different diameters. Uses an embedded electric heating coil fused to the pipe with an electrofusion welding machine to create a strong, molecularly bonded joint between the two sizes. Rated PN16 and suited to SDR7 to SDR17 pipe depending on size. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode reading and manual control boxes.

Benefits of the Plasson 491104 PN16 Electrofusion Reducing Coupler:

  • Joins two different pipe diameters in a single fused fitting
  • Creates a permanent, molecularly fused joint, stronger and more durable than a mechanical seal
  • Embedded heating coil ensures uniform, consistent fusion across each connection
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode reading and manual control boxes
  • Rated PN16 for water applications
  • BS EN 12201 and BS EN 1555 approved
  • Manufactured from virgin PE100 for long term strength and chemical resistance

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129

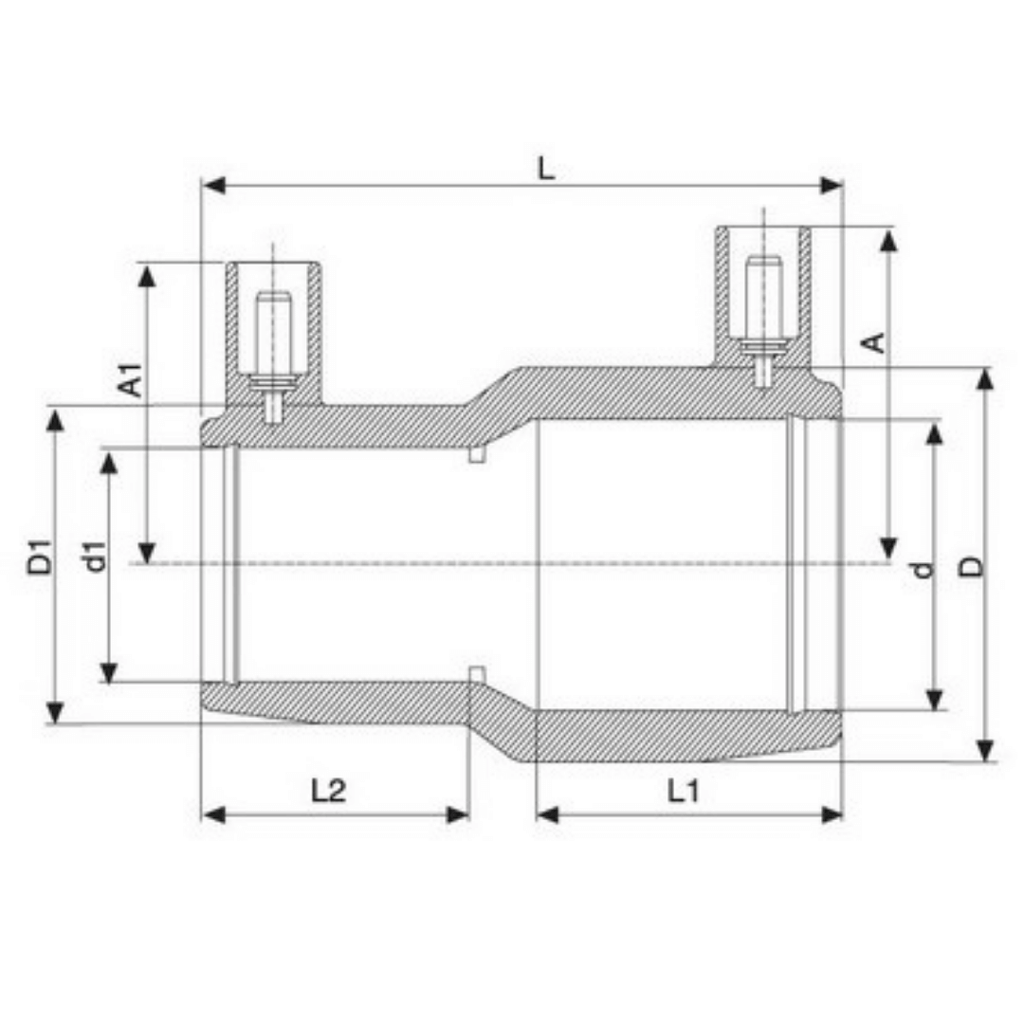

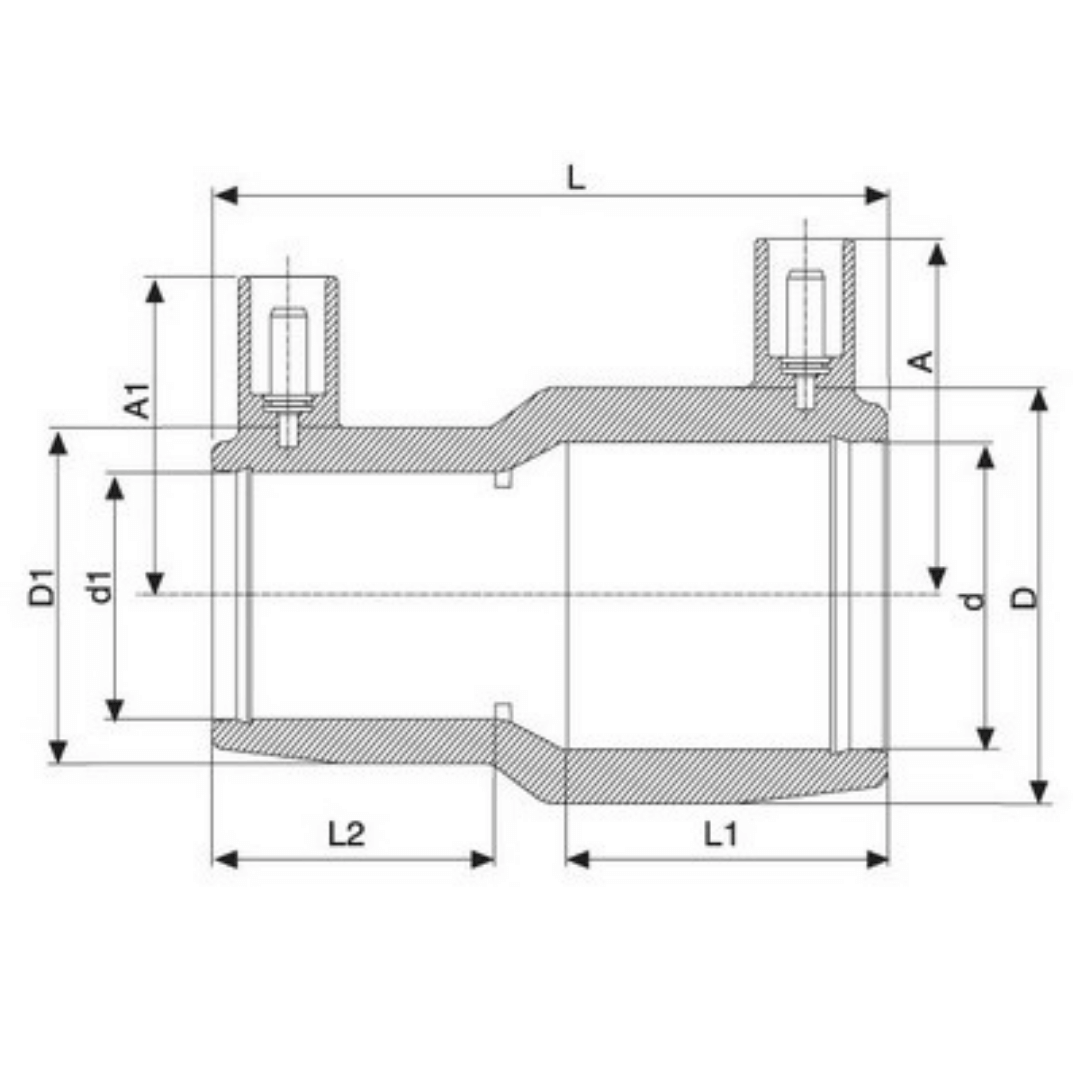

Product Code PN16 d mm d1 mm A mm A1 mm D mm D1 mm l1 mm L mm L1 mm Gas Pressure Rating Suitable Pipes Weight g
PF491104025020 PN16 25 20 39 39 36 36 35 71 - PE100 SDR 11 SDR 7 to SDR 11 50
PF491104032020 PN16 32 20 43 37 45 32 40 81 - PE100 SDR 11 SDR 7 to SDR 11 60
PF491104032025 PN16 32 25 43 39 45 36 40 81 - PE100 SDR 11 SDR 7 to SDR 11 60
PF491104040025 PN16 40 25 47 38 56 37 44 90 - PE100 SDR 11 SDR 7 to SDR 11 90
PF491104040032 PN16 40 32 47 43 56 44 44 90 - PE100 SDR 11 SDR 7 to SDR 11 90
PF491104050025 PN16 50 25 52 41 68 37 49 100 - PE100 SDR 11 SDR 7 to SDR 11 120
PF491104050032 PN16 50 32 52 45 68 45 49 100 - PE100 SDR 11 SDR 7 to SDR 17 120
PF491104050040 PN16 50 40 52 48 68 56 49 100 - PE100 SDR 11 SDR 7 to SDR 17 140
PF491104063032 PN16 63 32 59 45 82 45 57 119 - PE100 SDR 11 SDR 7 to SDR 17 180
PF491104063040 PN16 63 40 59 49 82 56 - 119 57 PE100 SDR 11 SDR 7 to SDR 17 180
PF491104063050 PN16 63 50 59 54 82 68 57 119 - PE100 SDR 11 SDR 7 to SDR 17 220
PF491104075063 PN16 75 63 66 59 98 82 66 126 - PE100 SDR 11 SDR 7 to SDR 17 310
PF491104090050 PN16 90 50 78 53 116 69 71 143 - PE100 SDR 11 SDR 7 to SDR 13.6 430
PF491104090063 PN16 90 63 78 61 116 82 71 143 - PE100 SDR 11 SDR 7 to SDR 13.6 460
PF491104090075 PN16 90 75 78 67 116 98 71 143 - PE100 SDR 11 SDR 7 to SDR 17 480
PF491104110063 PN16 110 63 84 61 139 82 78 161 - PE100 SDR 11 SDR 7 to SDR 17 640
PF491104110090 PN16 110 90 84 74 139 116 78 161 - PE100 SDR 11 SDR 7 to SDR 17 740
PF491104125090 PN16 125 90 88 70 158 116 85 171 - PE100 SDR 11 SDR 7 to SDR 17 1020
PF491104125110 PN16 125 110 88 80 158 141 85 171 - PE100 SDR 11 SDR 7 to SDR 17 1030
PF491104160090 PN16 160 90 105 69 199 116 94 193 - PE100 SDR 11 SDR 7 to SDR 17 1440
PF491104160110 PN16 160 110 105 80 199 141 94 193 - PE100 SDR 11 SDR 7 to SDR 17 1520
PF491104160125 PN16 160 125 105 89 199 158 94 195 - PE100 SDR 11 SDR 7 to SDR 17 1570
PF491104180125 PN16 180 125 116 87 222 158 103 212 - PE100 SDR 11 SDR 7 to SDR 17 2060
