Plasson 490904 PN16 Electrofusion 180° Elbow

SKU: PF490904025

Price:
Sale price £42.84 Incl. VAT
£35.70 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

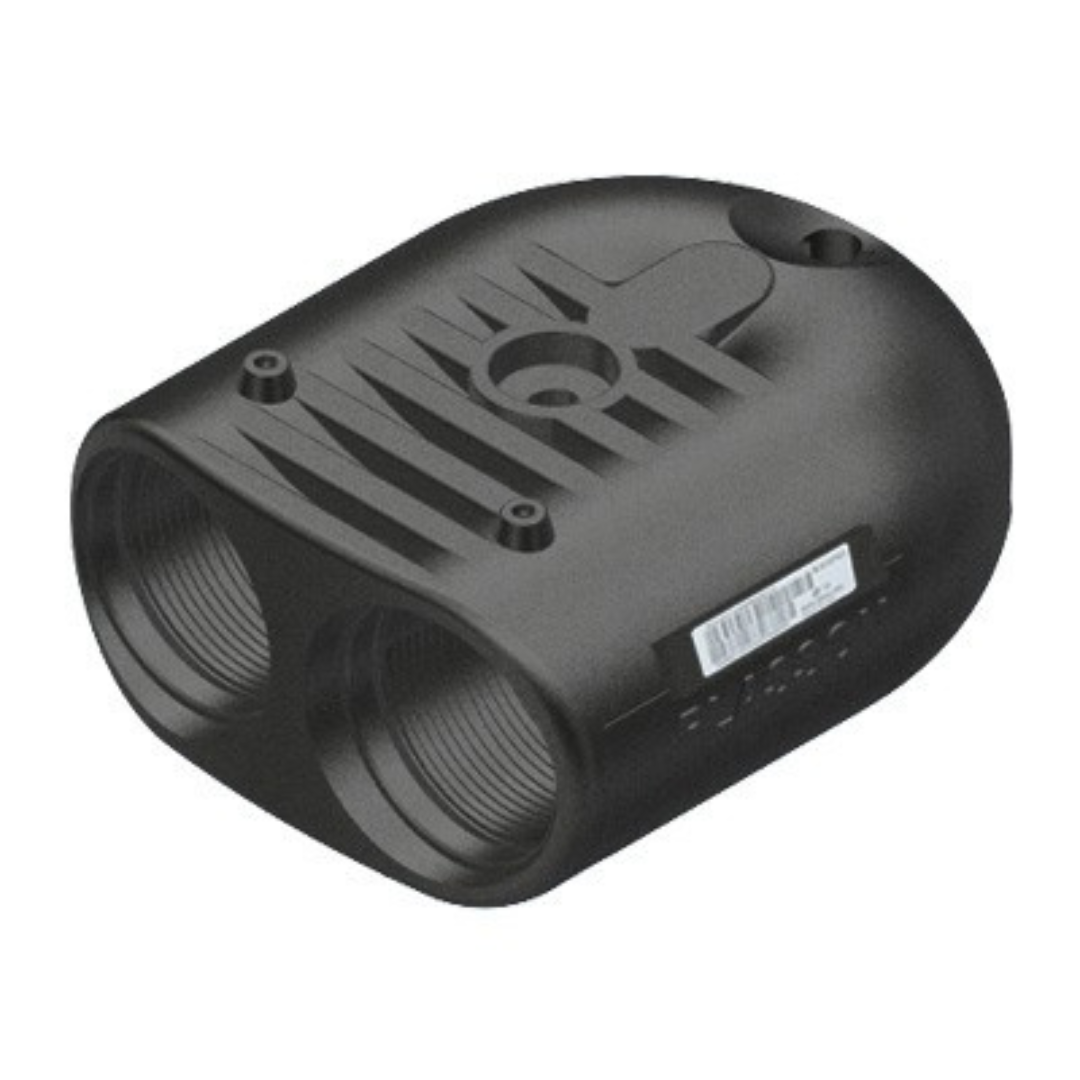

An electrofusion elbow for permanently reversing the direction of a PE pipe run by 180°. Uses an embedded electric heating coil fused to the pipe with an electrofusion welding machine to create a strong, molecularly bonded joint at each end. Rated PN16 and suited to SDR7 to SDR11 pipe. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode reading and manual control boxes.

Benefits of the Plasson 490904 PN16 Electrofusion 180° Elbow:

  • Reverses pipe direction by 180° in a single fitting
  • Creates a permanent, molecularly fused joint at each end, stronger and more durable than a mechanical seal
  • Embedded heating coil ensures uniform, consistent fusion across each connection
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode reading and manual control boxes
  • Rated PN16 for water applications
  • WRAS approved

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129

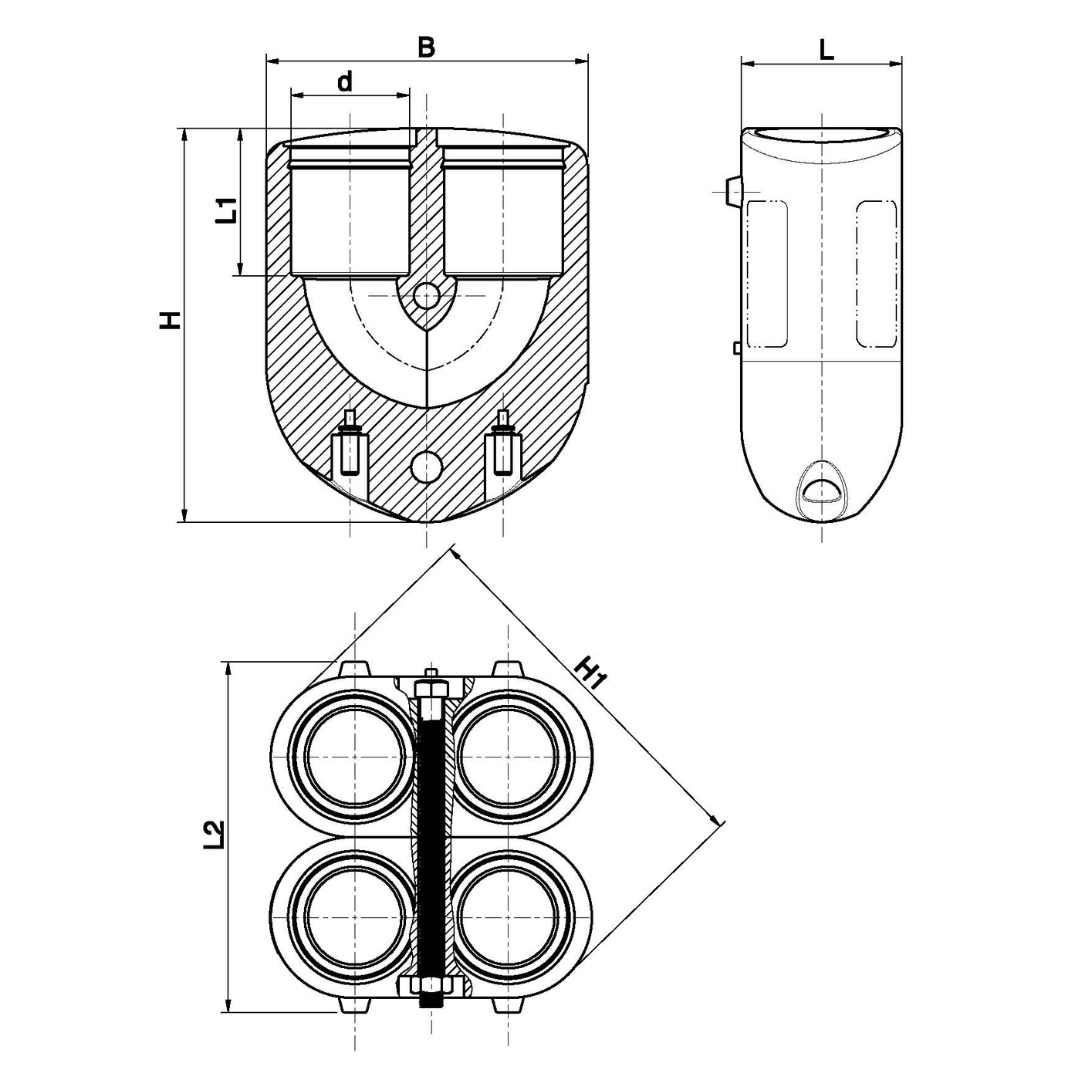

Product Code PN16 d mm B mm H mm L mm L1 mm Gas Pressure Rating Suitable Pipes Weight g
PF490904025 PN16 25 72 99 38 38 PE100 SDR 11 SDR 7 to SDR 11 170
PF490904032 PN16 32 88 108 44 41 PE100 SDR 11 SDR 7 to SDR 11 220
PF490904040 PN16 40 106 123 53 48 PE100 SDR 11 SDR 7 to SDR 11 320
