Plasson 490104 PN16 Electrofusion Coupler

SKU: PF490104020

Price:
Sale price £7.60 Incl. VAT
£6.33 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

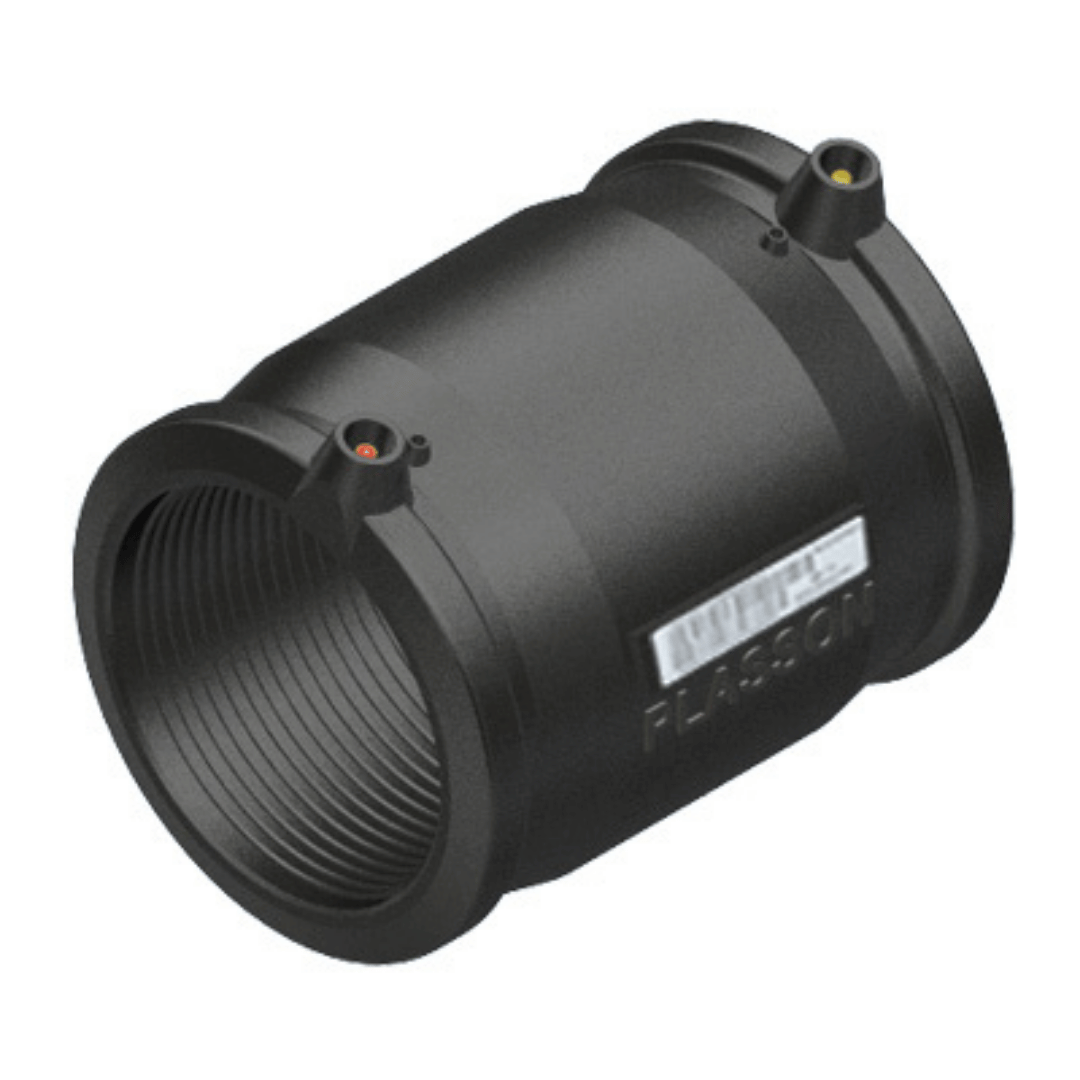

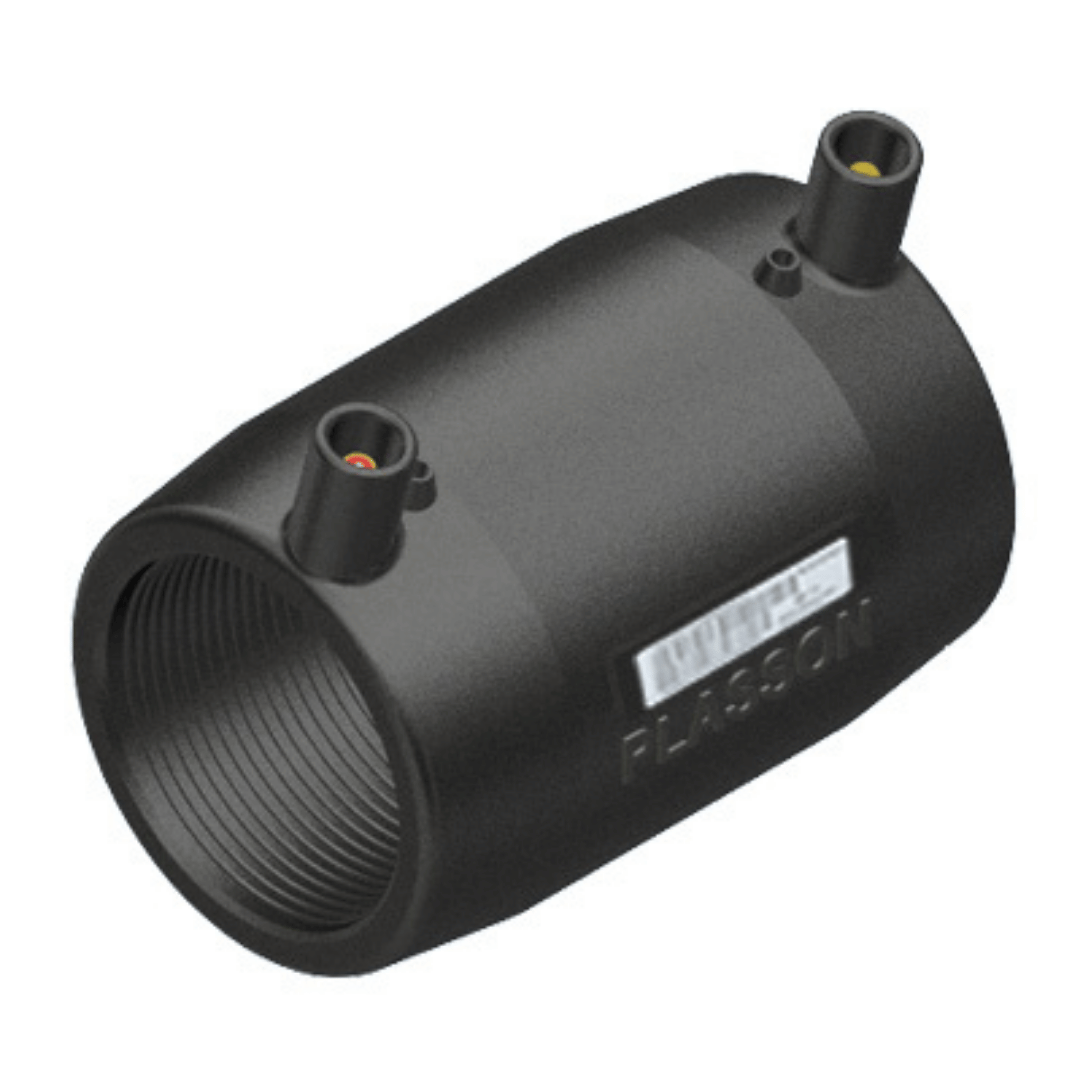

An electrofusion coupler for permanently joining two lengths of PE pipe of equal diameter. Plasson's electrofusion fittings are built for reliable, high-performance pipe joining and long system life. Using an embedded electric heating coil, fused to the pipe with an electrofusion welding machine, to create a strong, molecularly bonded joint. Fitted with 4.0mm pins and compatible with Plasson's SmartFuse System, Fusamatic, barcode-reading and manual control boxes.

Benefits of the Plasson 490104 PN16 Electrofusion Coupler:

  • Creates a permanent, molecularly fused joint. Stronger and more durable than a mechanical seal
  • Embedded heating coil ensures uniform, consistent fusion across the joint
  • Fitted with 4.0mm pins, compatible with SmartFuse, Fusamatic, barcode-reading and manual control boxes
  • Suitable for both water (PN16) and gas (PE100 SDR 11) applications
  • Compatible with SDR 7 to SDR 17/26 pipe depending on size
  • Individually numbered and batch-marked for full traceability and quality control
  • BS EN 12201 and BS EN 1555 approved
  • Manufactured from virgin PE100 for long-term strength and chemical resistance

Product Specifications:

Body Material: PE100

Standards: ISO 4427, ISO 4437, EN 1555, EN 12201, AS/NZS 4129 (up to 800mm)

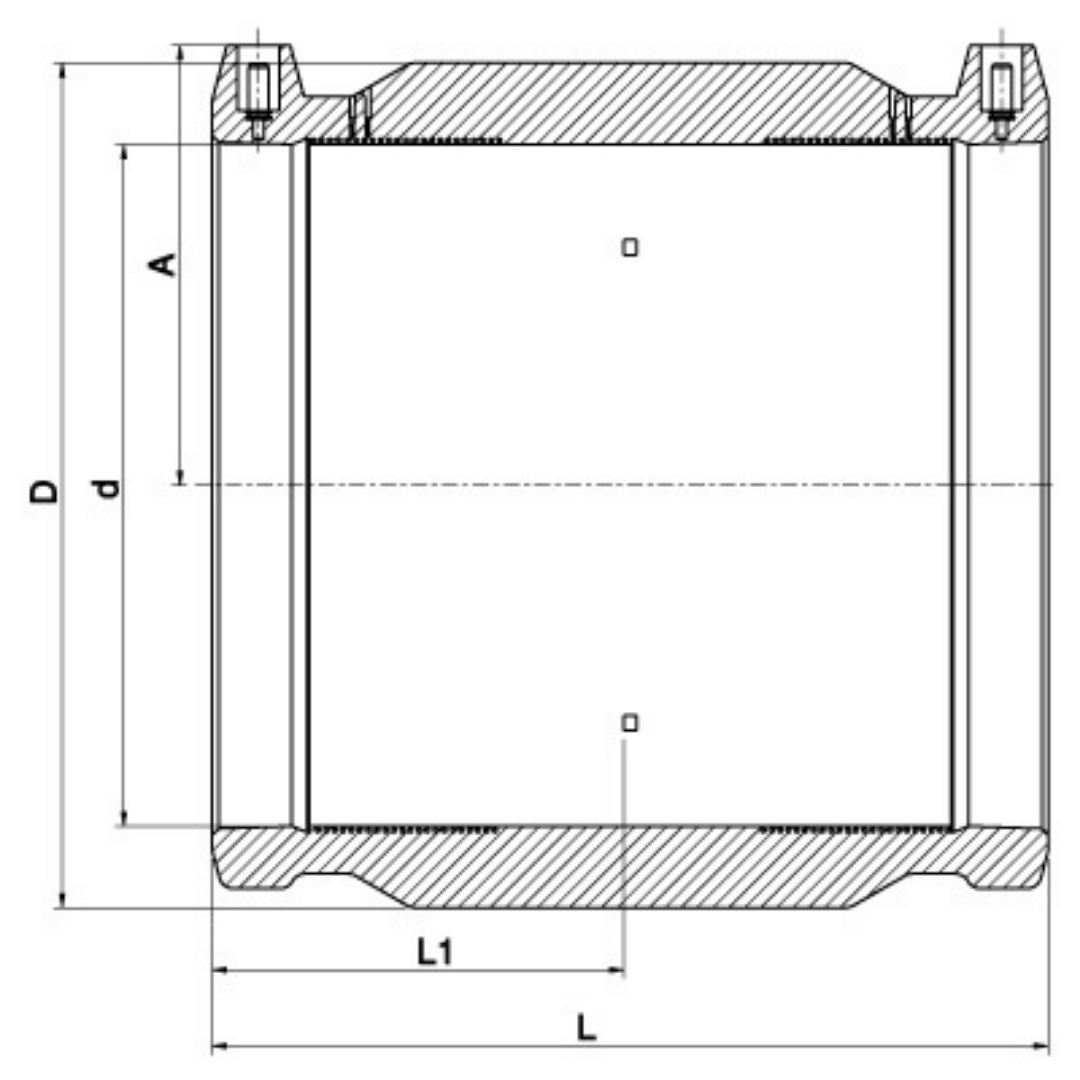

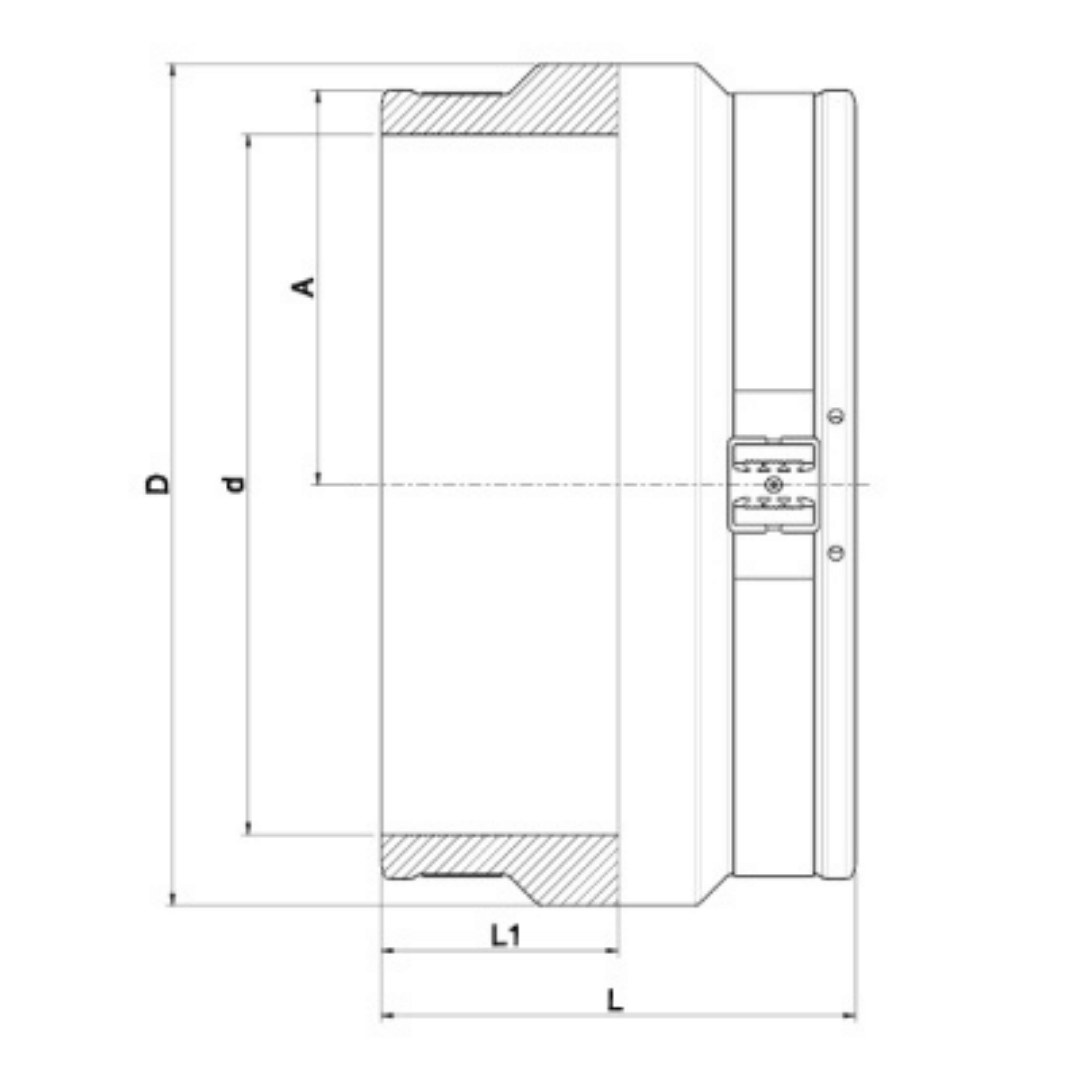

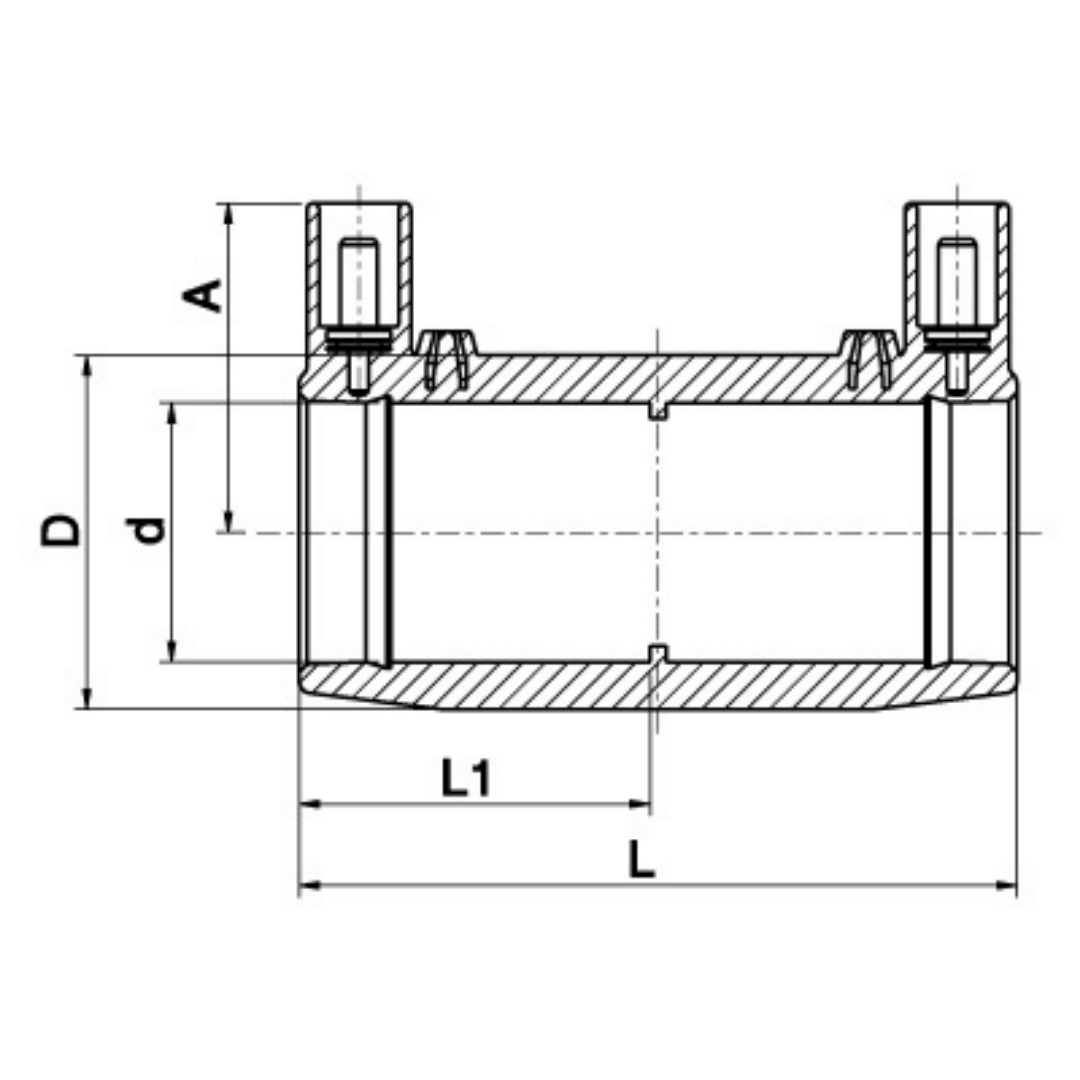

Product Code d mm A mm D mm l1 mm L mm L1 mm Gas Pressure Rating Pressure Rating Water Type Suitable Pipes Weight g
PF490104020 20 34 31 37 76 - PE100 SDR 11 PN 16 SDR 7 to SDR 11 50
PF490104025 25 37 36 40 82 - PE100 SDR 11 PN 16 SDR 7 to SDR 11 40
PF490104032 32 42 44 42 88 - PE100 SDR 11 PN 16 SDR 7 to SDR 11 64
PF490104040 40 46 56 47 97 - PE100 SDR 11 PN 16 SDR 7 to SDR 11 97
PF490104050 50 51 67 - 101 49 PE100 SDR 11 PN 16 SDR 7 to SDR 11 161
PF490104063 63 56 82 58 118 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 230
PF490104075 75 62 98 62 127 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 340
PF490104090 90 71 112 73 148 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 475
PF490104110 110 81 135 80 163 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 718
PF490104125 125 87 157 85 173 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 1075
PF490104140 140 97 174 90 183 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 1295
PF490104160N 160 105 194 - 195 93 PE100 SDR 11 PN 16 SDR 7 to SDR 17 1555
PF490104180N 180 116 218 105 212 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 2112
PF490104200N 200 126 242 109 223 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 2785
PF490104225N 225 138 272 119 240 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 3900
PF490104250 250 156 301 123 251 - PE100 SDR 11 PN 16 SDR 7 to SDR 21 4461
PF490104280 280 170 342 134 275 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 6440
PF490104315 315 184 387 139 282 - PE100 SDR 11 PN 16 SDR 7 to SDR 26 8845
PF490104355 355 203 431 137 277 - PE100 SDR 11 PN 16 SDR 7 to SDR 17 10200
PF490103400 400 231 485 - 293 145 PE100 SDR 11 PN 16 Monofilar, no straps SDR 7 to SDR 26 3000

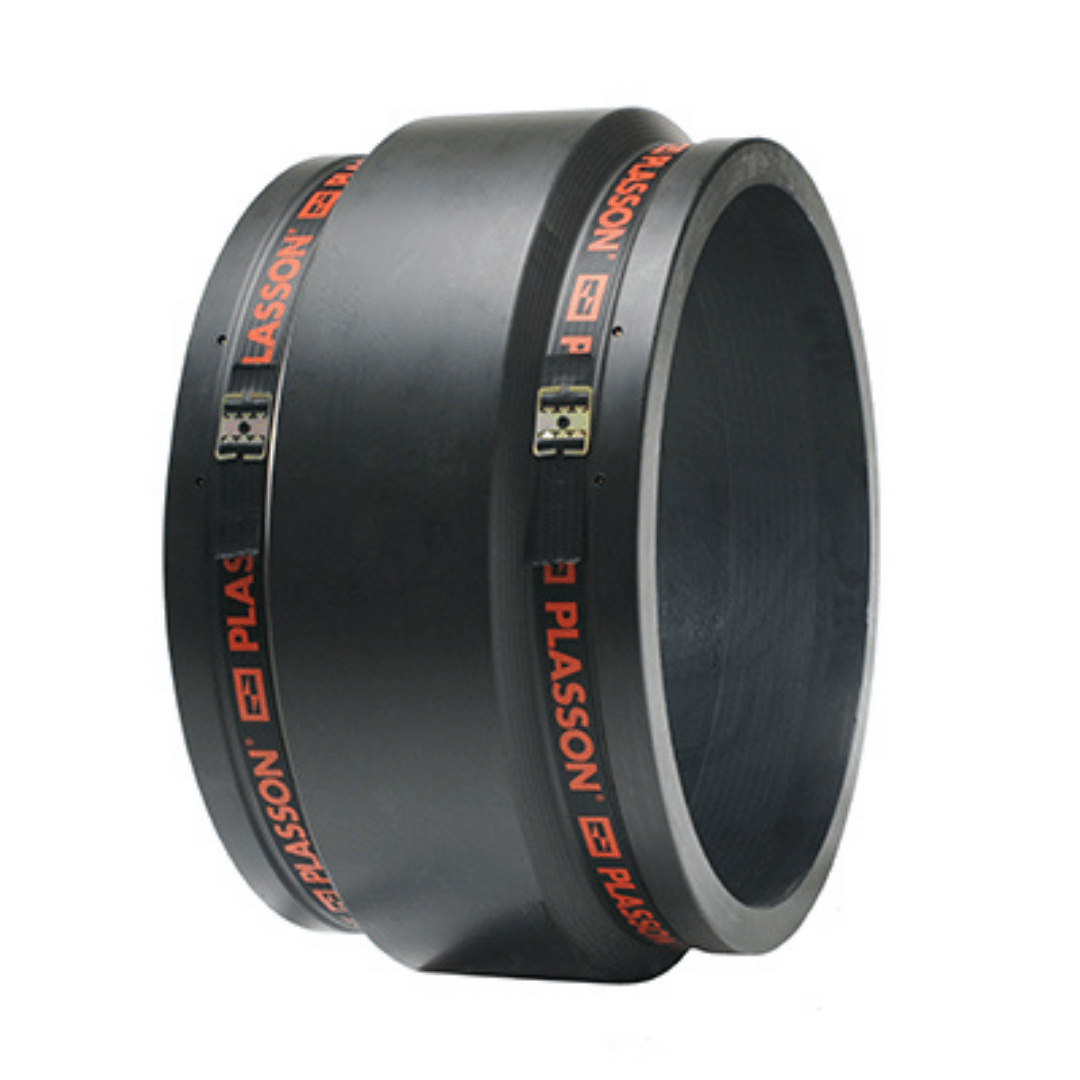

PF490103450 450 257 539 - 306 153 PE100 SDR 11 PN 16 Bifilar, with straps SDR 7 to SDR 21 16000
PF490103500 500 283 603 - 340 170 PE100 SDR 11 PN 16 Bifilar, with straps SDR 7 to SDR 21 20200
PF490103560 560 317 674 - 376 188 PE100 SDR 11 PN 16 Bifilar, with straps SDR 7 to SDR 33 28000
PF490103630N 630 356 759 - 418 209 PE100 SDR 11 PN 16 Bifilar, with straps SDR 7 to SDR 33 41100
PF490103710 710 400 853 - 472 236 PE100 SDR 11 PN 16 Bifilar, with straps SDR 7 to SDR 26 62000
PF490103800 800* 450 955 - 500 250 PE100 SDR 11 PN 16 Bifilar, with straps SDR 7 to SDR 21 87000
PF490103900 900* 503 1070 - 500 250 PE100 SDR 11 PN 16 Bifilar, with straps SDR 11 to SDR 21 100100
PF4901031000 1000 563 1194 - 570 285 PE100 SDR 11 PN 16 Bifilar, with straps SDR 11 to SDR 21 -

Please note:

*800mm and 900mm are 42V fittings.
