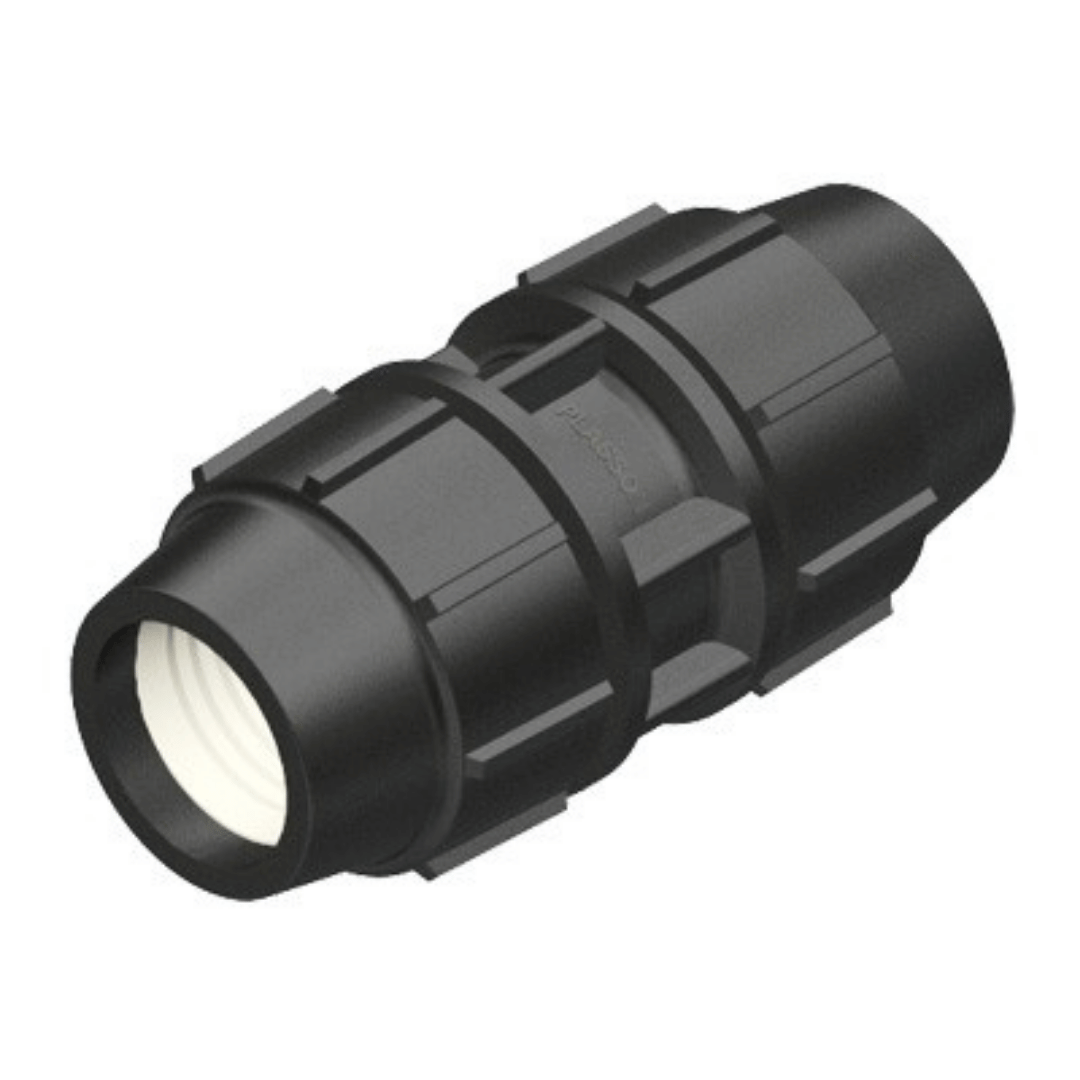

Plasson 160mm 7010 Equal Coupler Compression Fitting

SKU: PL0701061600A

Price:
Sale price £480 Incl. VAT
£400 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery:

Description

A straight coupler for joining two lengths of 160mm PE pipe. At this size the joint is secured with stainless steel bolts rather than a hand-tightened nut, giving a watertight, mechanically secure connection without fusion or solvent cement, suited to water mains, supply pipe and infrastructure use.

Benefits of the Plasson 160mm 7010 Equal Coupler Compression Fitting:

  • Bolted closure gives a strong, evenly-tightened seal on larger-diameter pipe
  • Captive O-ring seal sits in a machined groove, so it can't be lost, displaced or contaminated during fitting
  • Stainless steel bolts resist corrosion for long-term outdoor and in-ground use
  • Built from high-grade polypropylene copolymer for strong impact and stress resistance
  • Frost-resistant and UV-stable for outdoor installation
  • Reusable and demountable, unlike fusion joints, making future maintenance easier
  • WRAS-approved for use on potable water supply

Product Specifications:

Body Material: Polypropylene, high-grade copolymer.

Nut Material: Polypropylene, high-grade copolymer.

Split Ring Material: Polyacetal

Seal Material: NBR

Standards: ISO 17885 for water applications, AS/NZS 4129

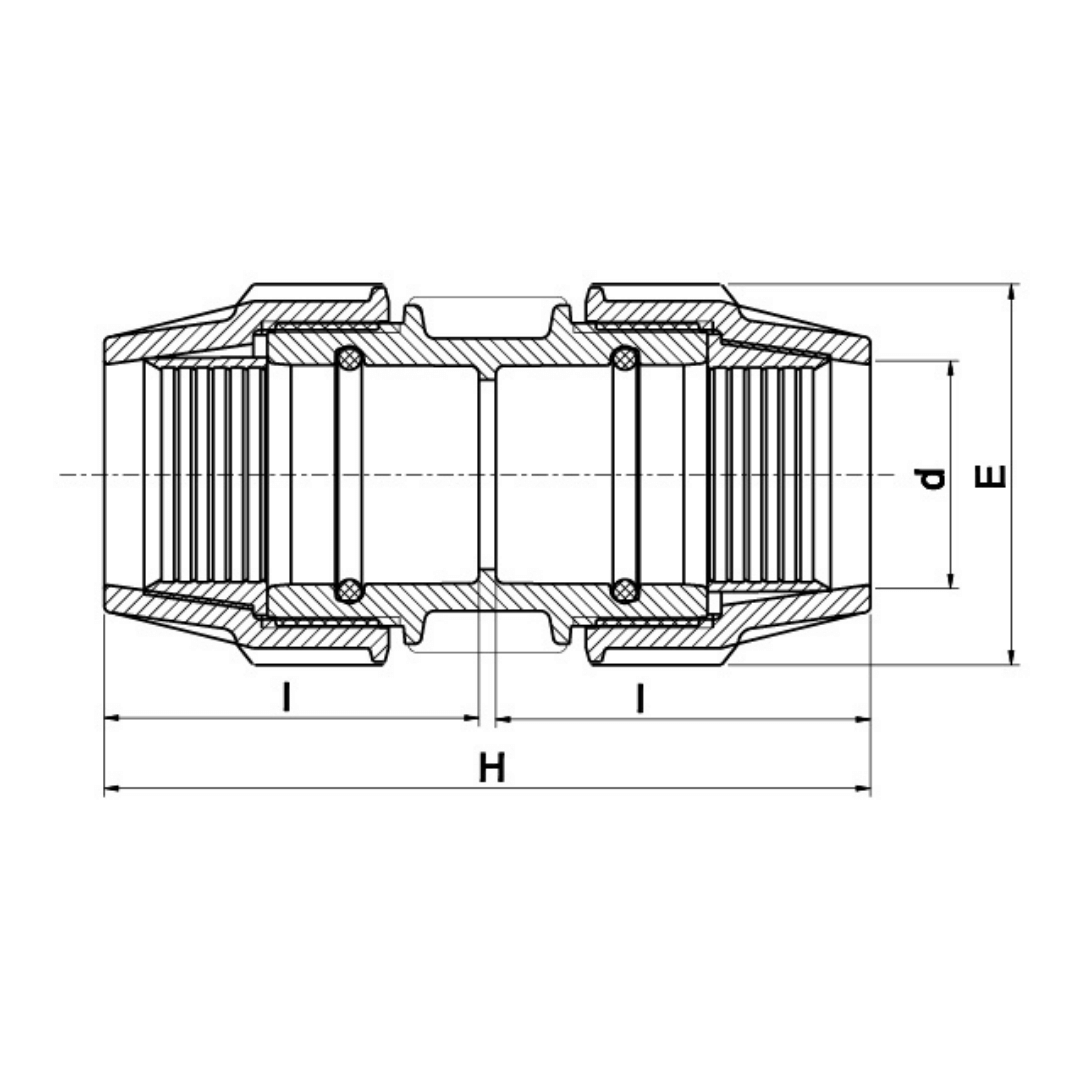

Product Code d mm E mm H mm L mm Pressure Rating Water Bolt Material Weight g
PL0701061600A 160 280 418 204 PN 10 Stainless Steel 8888
