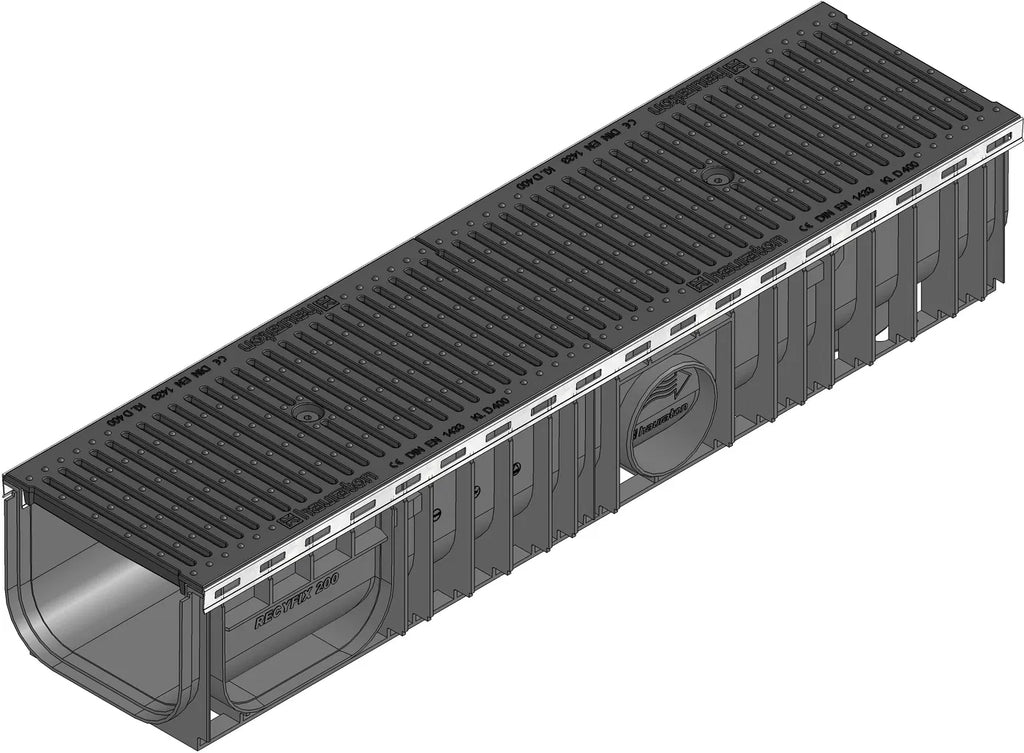

Hauraton Recyfix PLUS 200 D400 Channel & HeelSafe Ductile Iron Grating - 1000mm

SKU: 40790

Price:
Sale price £177.88 Incl. VAT
£148.23 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more

Description

The Hauraton Recyfix Plus 200 D400 channel with HeelSafe ductile iron grating is designed for the reliable drainage of public and commercial spaces where both strength and safety are essential. Manufactured from recycled polypropylene with integrated galvanised steel frames, the channel offers excellent stability while remaining lightweight and easy to handle on site. Its tongue and groove connection allows for simple installation, while the pre-assembled grating saves time and reduces labour costs.

With a drainage cross-section of 290cm² and an intake cross-section of 557cm² per metre, the system provides efficient water intake and flow even under demanding conditions. The ductile iron HeelSafe grating is corrosion-protected and designed for pedestrian safety, making it ideal for trafficked areas such as car parks, roadways, and public squares. Certified to EN 1433 and tested to D400 load class, this channel system ensures lasting durability, resistance to frost, UV exposure, de-icing salts, and high temperature fluctuations.

Benefits of the Hauraton Recyfix PLUS 200 D400 Channel & HeelSafe Ductile Iron Grating - 1000mm:

  • HeelSafe ductile iron grating
  • High hydraulic performance
  • Corrosion-protected steel frame
  • Lightweight recycled PP body
  • Quick installation design

Product Specifications:

Length: 1000mm

Width: 247mm

Height: 186mm

Drainage Cross-Section: 290cm²

Intake Cross-Section: 557cm²/m

Load Class: D400 (400kN)

Weight: 18.4kg

Material: Recycled polypropylene with galvanised steel frame

Grating: HeelSafe ductile iron, locked
