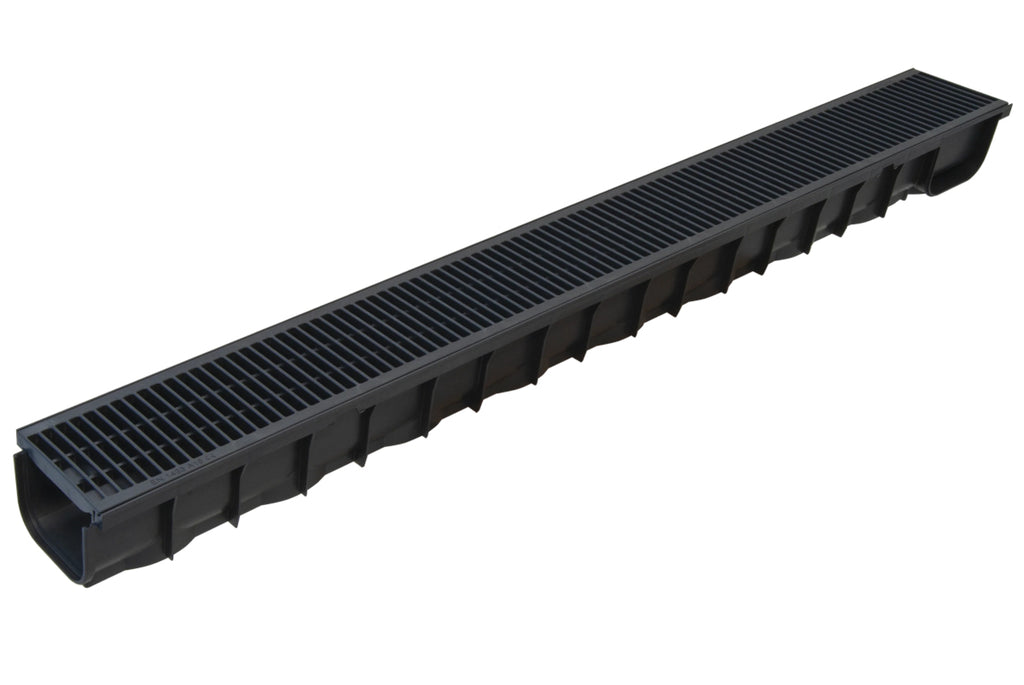

DekDrain Vela A15 Channel Drain - 1m (Plastic Grate)

SKU: DCD-VL50-PL

Price:
Sale price £6.23 Incl. VAT
£5.19 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
See Full Range
Estimated Delivery: 1-2 working days.

Description

The DekDrain Vela A15 with Plastic Grate is a lightweight, no-fuss channel drain for pedestrian and light traffic areas, often compared to ACO channel drain systems for everyday path and patio drainage. Handles up to 1.5 tonnes and built for easy installation with long-lasting, low-maintenance performance.

Benefits of the DekDrain Vela A15 Channel Drain:

  • Plastic Grate: Lightweight, durable, and cost-effective for pedestrian and light traffic areas
  • Quad-Less Design: Connect lengths at the sides to form neat 90-degree corners — no special fittings needed
  • Socket & Spigot Slide-In Connection: Simple, secure assembly for fast installation
  • 2 Knockout Bottom Outlets: Located at either end for flexible drainage run configurations
  • Self-Cleaning Flow: Higher water flow keeps the system clear, reducing maintenance requirements
  • A15 Load Rated: Certified to BS EN 1433 for pedestrian and light vehicular traffic up to 1.5 tonnes

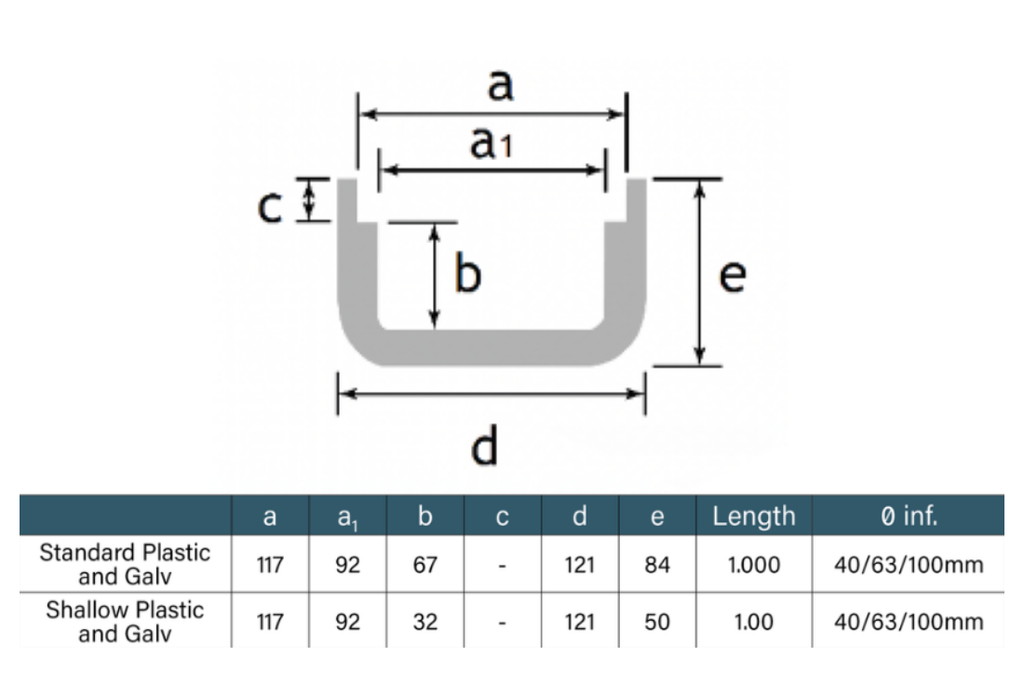

Product Specifications:

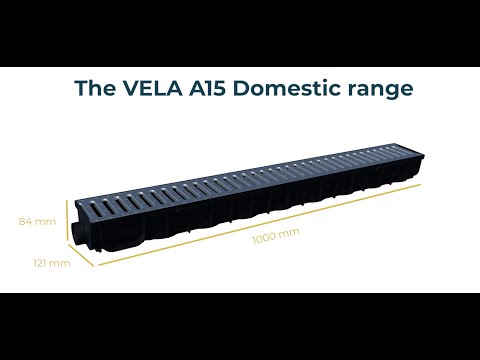

Length: 1000mm

Width: 121mm

Depth: Select from dropdown

Material: Channel is made from Polypropylene and Grate is Plastic

Maximum Weight Capacity: 1.5 tonnes

Please note:

The DekDrain Channel Drain has recently been redesigned, so this will not match any DekDrain Channel Drains purchased before June 2024.

Deliveries are made on the basis the customer can accept the goods, or willingness to off load the goods, or having means of mechanical offload, this also applies to heavier items such as pallets etc. All deliveries are made ‘kerbside’ and often it can be at the discretion of the driver. A large majority of deliveries would be made on a large rigid tail-lift vehicle and off loaded via a pallet truck and only on to flat surfaces such as tarmac, concrete and pavers.

If you do have restricted access, please contact us prior to placing your order. We will always try to accommodate your needs. If a delivery fails due to access, we reserve the right to make a re-delivery charge.

All delivery charges are calculated when checking out. The delivery charges included are for the Mainland UK only and do not apply to the Scottish Highlands, or Isles off the Mainland. Additional charges may apply for deliveries that aren’t classed within the Mainland (this is classed by ourselves, suppliers and couriers) Please contact us on 01752 936152 or sales@drainagesuppliesdirect.co.uk

Due to the nature of our business model, this can mean your order will be sent via multiple deliveries.

Whilst we will make every effort to deliver your goods within the stated/requested time frame, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules, so we would recommend the end user not to start/schedule any work until the goods arrive. Due to logistics of various couriers and suppliers we are unable to give times of deliveries. However, please call or email us on the day of the delivery and we will try to get an approximate time. Deliveries can take place from as earlier as 07:30 right up to 18:00 depending on the courier/haulier and taking into account local traffic etc.

You have 14 days from receiving your item(s) to return them should you wish to do so. Please contact us should you wish to arrange a refund/return. Any product marked cut to size, bespoke or made to order are non returnable and excluded from our refund policy.

  • Can this system be used to make a tee junction. ?

    This channel drain can be formed into a tee junction wi

  • do they have a 90 degree corner fitting?

    The corner are built into the product for this one, they arent easy to see but on the one end of the drain there is a connector on either side.

    The idea being you break out the side you want to connect to, and then block the water from going straight on via an end cap.



  • Do you have a reducer to go from 110 mm to my 38mm existing drain pipe. It is 150mm to the centre, below the surface of the paving. Can I get that to work with the A15?

    We dont have any reducers for these, there are rubber couplers, but i dont have anything to cover this range.

  • Hi im looking to purchase several of these A15 deck drains to remove excess water runoff - do they come with ends

    They do not come wiht the end caps, but end caps are available.

    DekDrain A15 Plastic End Caps - Pack of 2

  • Can these be cut to size?

    Yes, they can be cut to length. You do lose the interlocking sections when doing that so would need to be butt joined.
