160 X 110MM DYKA Underground 45 Degree Double Socket Junction

SKU: 018264B33

Price:
Sale price £48.89 Incl. VAT
£40.74 Ex. VAT
Pay in 3 interest free payments with PayPal on checkout.
Choose PayPal at checkout. Learn more
Estimated Delivery: 3-5 working days delivery

Description

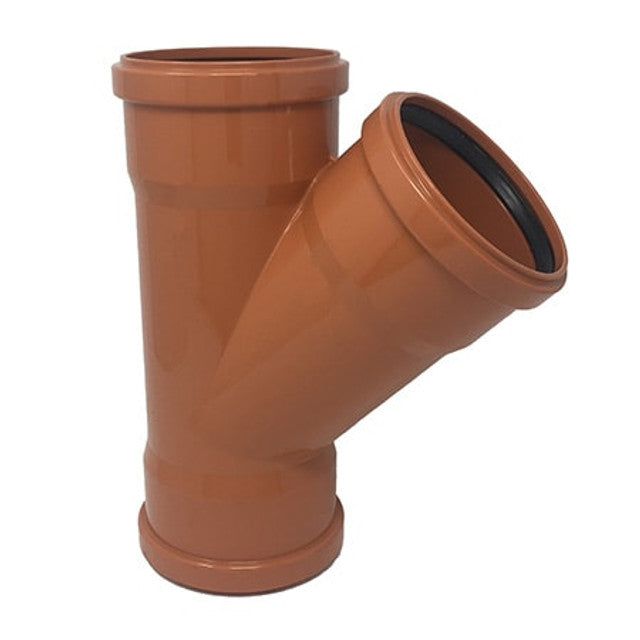

The 160 x 110mm DYKA Underground 45 Degree Double Socket Junction is a uPVC fitting designed for underground drainage systems. Its main purpose is to connect a 110mm branch pipe to a 160mm main pipe at a 45-degree angle.

The "unequal" sizing (160mm and 110mm) makes it ideal for systems where a smaller line needs to merge with a larger one. The "double socket" design means there are two sockets: one for the 160mm main pipe and one for the 110mm branch pipe. The 45-degree angle promotes a gradual, smooth flow, making it particularly useful for creating gentle changes in a drainage layout and preventing blockages.

Benefits of the 160 X 110MM DYKA Underground 45 Degree Double Socket Junction:

  • Unequal Connection: Specifically designed to join a smaller 110mm branch pipe to a larger 160mm main pipe, providing a key solution for managing different pipe sizes within a single drainage system.
  • Gentle Flow Transition: The 45-degree angle promotes a smooth, gradual merge of waste from the branch pipe to the main pipe, which helps to prevent turbulence and reduces the risk of blockages.
  • Watertight Seal: The double socket design, with its rubber ring seals, ensures a secure, leak-proof connection on both the 110mm and 160mm pipe ends, maintaining the integrity of the drainage network.
  • Durable and Resilient: Made from uPVC, this fitting is highly resistant to corrosive chemicals, ground movement, and root intrusion, offering a long-lasting and reliable component for underground use.
  • Versatile Application: The more gradual 45-degree angle offers flexibility in drainage layout, making it an excellent choice for navigating obstacles or creating a less abrupt change in direction compared to a standard 87.5-degree junction.

Product Specifications:

Pipe Diameter: 160mm - 110mm

Angle: 45 Degrees

Sockets: Double
